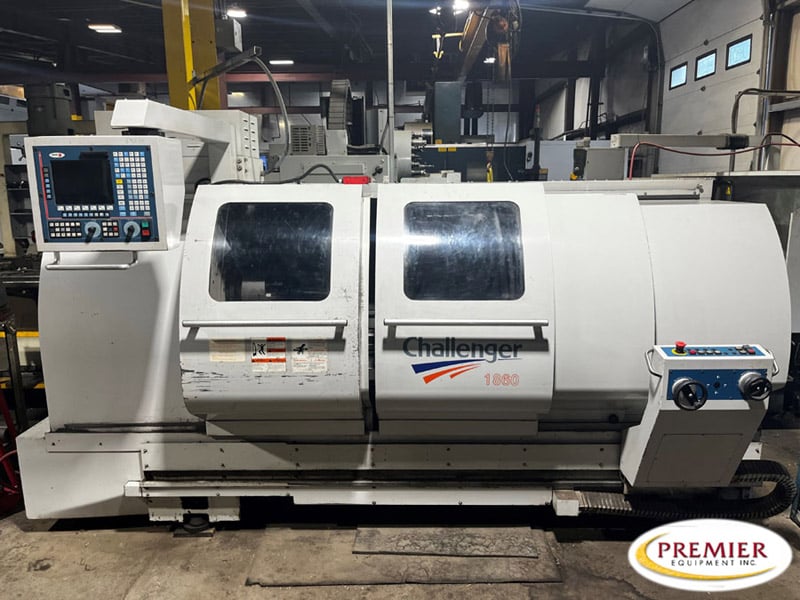

Microcut Challenger BNC1860 CNC Teach Lathe
Specifications (subject to buyer verification):
Swing in gap 28”
Swing over bed 18”
Swing over cross slide 9”
Max. turning length (with turret) 60”
Bar capacity (hyd. Chuck cylinder) 2”
Gap length from spindle nose surface 97”
Max. work piece weight (with tailstock) 3,300 lbs
TRAVEL:
X axis 10”
Z axis 65”
SPINDLE:
Speed range 100-4500 rpm – 2 Speed
Spindle nose D1-6
Spindle hole diameter 2.5”
Motor power 10 HP, 220 Volt
Max. speed torque 29.3 kgm
TURRET (OPTIONAL):
Number of tool stations 8
Tool allowance 25 mm
Tool shank 40 mm
Indexing Time 0.42 sec.
FEED RATE:
X axis rapid traverse 15m/min.
Z axis rapid traverse 15m/min
Jog feed per revolution 1 m./rev.
SLIDE:
Overall bed guide width 13.97”
Cross slide guide width 8.46”
TAILSTOCK:
Quill stroke 5.9”
Quill diameter 3.15”
Quill inside taper 5 MT
DIMENSION:
Length 138”
Width 71”
Height 79.5”
WEIGHT: Weight of machine 7000 lbs (approx.)
Equipped With (subject to buyer verification):
Fagor Control
Tailstock
Turret
