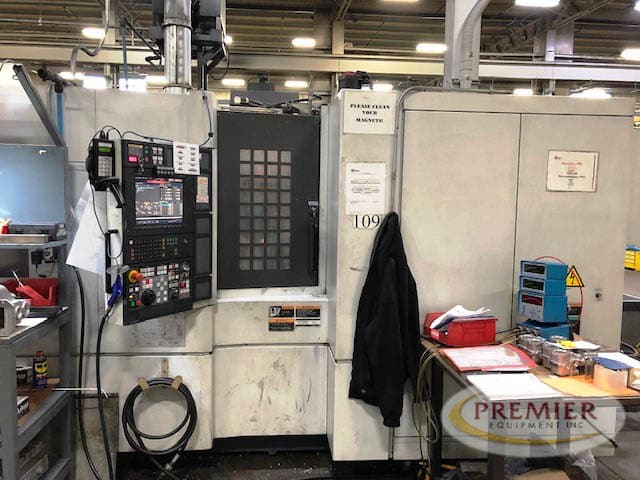

MORI SEIKI NH4000DCG CNC HORIZONTAL MACHINING CENTER
Specs
Pallet Size 15.7″ x 15.7″
Number Of Pallets 2
Pallet Weight Capacity 882 Lbs.
Pallet Surface to Spindle Center 3.1″ – 25.1″
Pallet Center To Spindle Gage Line 3.9″ – 28.7″
Workpiece Size Diameter x Height 24.8″
X – Axis Travel 22″
Y – Axis Travel 22″
Z – Axis Travel 24.4″
B – Axis Travel 1 Indexing
Rapid Traverse Rates X, Y, Z 1968, 1968, 1968 IPM
Spindle Speed 14,000 RPM
Spindle Taper 40 CT
Main Motor 25 HP
Number Of Tools 60 ATC
Tool Diameter 2.7″ / 5.5″
Tool Length 15.7″
Tool Weight 17.6 Lbs.
Tool Change Time .9 Seconds
Machine Weight 21,800 Lbs.
Equipped with
300 PSI THRU SPINDLE COOLANT 48 PAIRS OF WORK COORDINATES
99 TOOL OFFSETS AUTO TOOL SETTER
CHIP CONVEYOR FANUC MSX 501III CNC CONTROL 18IMB
MAPPS CONVERSTIONAL PROGRAMMING
