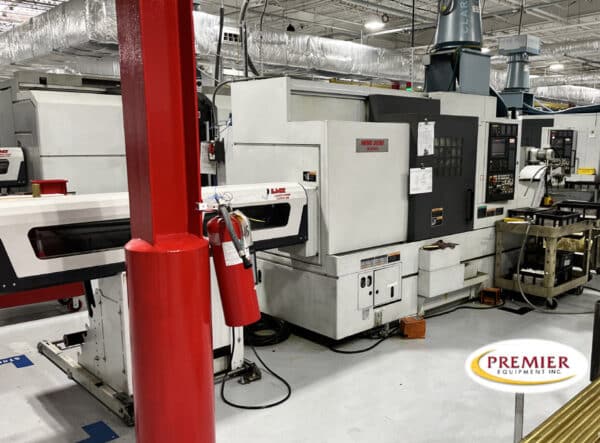

Mori Seiki NL-2500SY/ 700 – 2008

Mori Seiki NL2500SY for sale
/ 700 Multi-Axis Turning Center

SPECIFICATIONS:
Swing Over Bed: 36.4″
Swing Over Front Cover: 29.7″
Max. Turning Diameter: 14″
Max. Turning Length: 27.7″
Bar Work Capacity: 3.1″
X Axis Travel: 10.2″
Y Axis Travel: 3.9<+/-2.
Z-Axis Travel: 31.3″
Max. Spindle Speed, Main: 4,000 RPM
Max. Spindle Speed , Sub: 6,000 RPM
Main Spindle Nose: 12-8
Sub Spindle Nose: A2-5
Thru Spindle Hole Dia., Main: 3.6″
Thru Spindle Hole Dial, Sub: 1.7″
Number of Tool Stations: 12
Max. Rotary Tool Speed: 6,000 RPM
Main Spindle Drive Motor: 25/20 HP
Sub Spindle Drive Motor: 15/10 HP
Rotary Tool Drive Motor: 7.5/5 HP

Equipped With:
Mori Seiki MSX850III Control
10” Chuck on Main Spindle
6″ Chuck on Sub Spindle
Parts Catcher
Chip Conveyor
All Available Manuals
Multiple Live & Static Tool Holders
