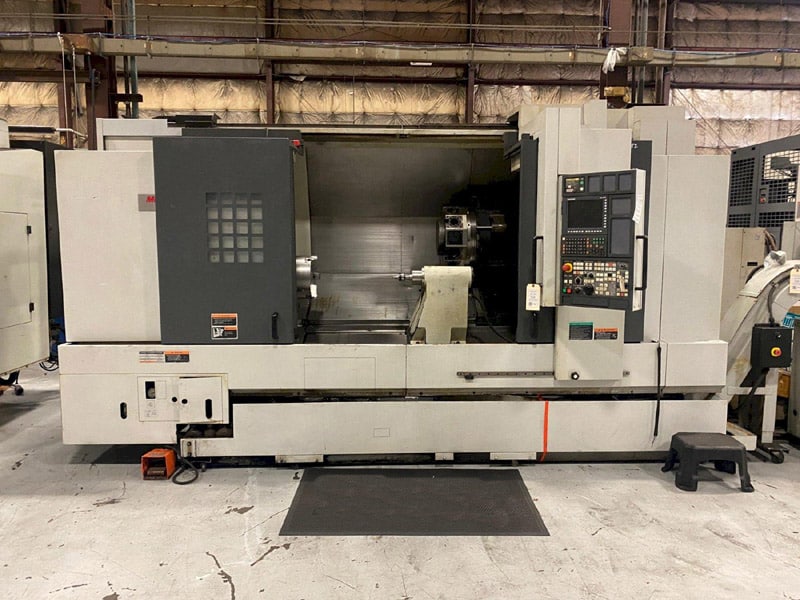

Mori Seiki NL3000MC/1250 Used CNC Lathe
SPECIFICATIONS
# Axis 3
Swing 39.2 in
Turning Diameter 16.9 in
Max Turning Length 49.6 in
Center Distance 53.9 in
Chuck Size 12 in
Bar Capacity 3.5 in
X Axis Travel 11 in
Z Axis Travel 53.9 in
C Axis Index 0.001°
Rapid Traverse (X/Z) 1181 ipm
Spindle Nose A2-8
Spindle Speed 3,000 rpm
Main Motor 30 hp
Live Tooling yes
Live Tooling Speed 6,000 rpm
Live Tooling Motor 7.5 hp
Tailstock yes
Y Axis no
Sub Spindle no
Turret Capacity 12 12
Machine Dimensions 180″ x 91″ x 95″
Machine Weight 17000 lb
EQUIPPED WITH
– Mori MSX-850 III CNC Control (Mitsubishi)
– Live Tooling
– 12 Position Turret
– Chip Conveyor
– Coolant Tank & Pumps
– Cooljet Systems
– Tailstock
– Tool Presetter
