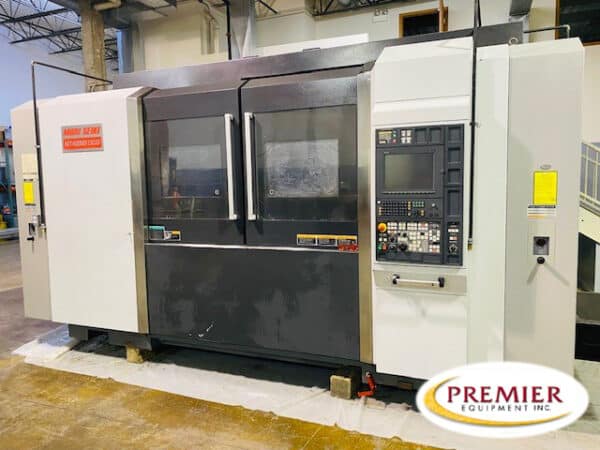

Mori Seiki NT4250DCG/1500SZ – 2005

Mori Seiki NT-4250DCG/1500SZ Multi-Tasking Lathe
Specifications (subject to buyer verification):
Max. Swing Head 1, Head 2 28.7”
Swing Over Cross Slide 28.7” / 15.7” TRT # 2
Max. Distance Between Centers S & SZ 73.3”
Max. Turning Length SZ 60.7”
Max. Turning Diameter 25.9” / 13.7” TRT # 2
X1 – Axis Travel 24.6″ + 4.9″‘
X2 – Axis Travel Turret 7.7”
Z1 – Axis Travel 61.0″ + 3.9″
Z2 – Axis Travel Turret 60.0”
Y – Axis Travel + – 8.3”
B – Axis Min. Index Angle / Index Range + – 120 DEGREE
C – Axis Travel Main / Sub .0001 Deg.
Spindle Bore Main 3.6”
Bar Work Capacity (1 & 2 ) 3.1”
Spindle Nose (1 & 2) A2 – 8’
Spindle Speeds (1 & 2) 4000 RPM
Spindle Drive Motor (1 & 2 ) 30 HP
Rapid Traverse X, Z, Y, 1968, 1968, 1181 IPM
Rapid Traverse Turret X2, Z2 1181, 1181 IPM
Tool Spindle Speed 12,000 RPM
Tool Spindle Drive Motor 24.7 HP
Number Of Tool Changer / Type 40 ATC C6
Turret Indexing Time 1.6 secs.
Turret Configration 12 Station
Machine Weight 56,320 LBS.

Equipped With (subject to buyer verification):
MSX 7111 FANUC 31IA5 CNC CONTROL
(2) 10″ 3-JAW HYDRAULIC CHUCKS
30 HORSEPOWER MAIN AND SUB SPINDLE
500 REGISTERED PROGRAMS
640 METERS PART PROGRAM STORAGE
6GB PROGRAM STORAGE AREA FOR MAPPS DNC
CHIP CONVEYOR SIDE HINGE TYPE
CHUCK AIR BLOW FOR SUB SPINDLE
CUSTOM MACRO B PROGRAMMING
CYLINDRICAL & HELICAL INTERPOLATION
DIAMETER/RADIUS DYNAMIC SWITCHING
FAST DATA SERVER WITH ATA CARD
HIGH PRESSURE COOLANT INTERFACE
LOWER TURRET BOLT ON TYPE
MANUAL TYPE IN MACHINE TOOL PRESETTER REMOVABLE
MAPPS IV PROGRAMMING
MULTIPLE THREAD CUTTING
NANO & POLAR COORDINATE INTERPOLATION
NANO SMOOTHING AI CONTOUR CONTROL FUNCTIONS II
THREAD CUTTING RETRACT
TOOL OFFSETS 64 PAIRS
