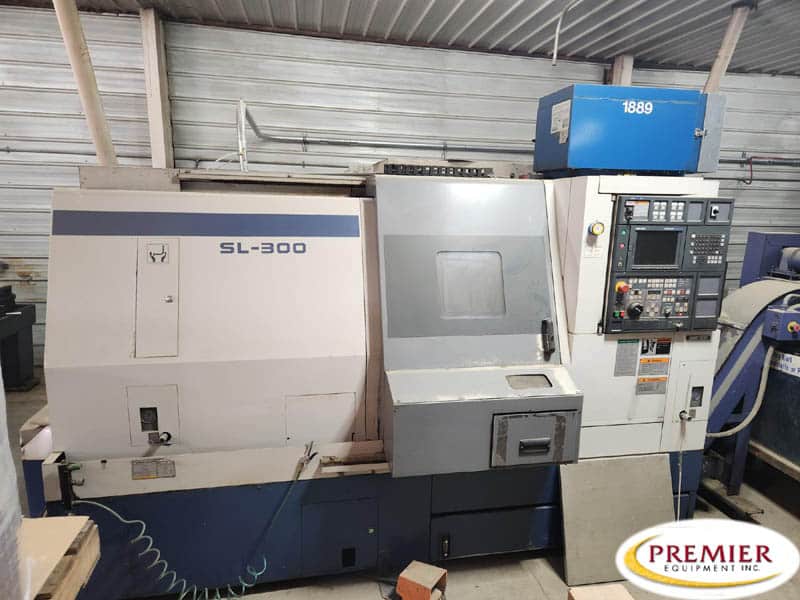

Mori Seiki SL300B/700 CNC Turning Center
Specifications (subject to buyer verification):
Swing over bed 28.1”
Swing over cross slide 19.7”
Between centers 29.3”
Max turning diam 16.5”
Max turning length 27.9”
Bar work capacity 3.5”
Spindle speed range 25-2500rpm
Spindle nose A2-8
Spindle hole diam. 4.1”
Turret stations 12
Turret index time 0.2 sec
Tailstock travel 22.4”
Tailstock spindle diam. 4.3”
Tailstock hole taper MT5 (live center)
Tailstock spindle travel 5.9”
Spindle drive motor (30min/cont) 30/25HP
Machine dimensions (LxWxH) 133.9”x75.4”x80.7”
Machine weight 14,850 lbs,
Equipped With (subject to buyer verification):
MSC-501 CNC Control ?
Chuck
Tailstock
Chip Conveyor
