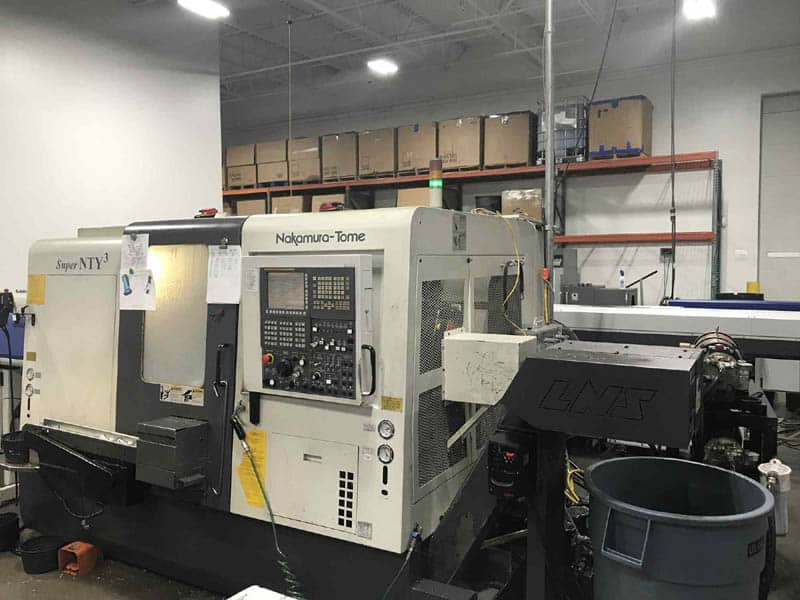

NAKAMURA-TOME Super NTY3 Multi-Axis CNC Turning Center
SPECIFICATIONS:
Max Turning Diameter 8.85 (225) in (mm)
Max Turning Length 26.9 (685) in (mm)
BAR CAPACITY
Bar Capacity L-Spindle 2.5 (65) in (mm)
Bar Capacity R-Spindle 2.0 (51) in (mm)
Chuck size 8 (210) in (mm)
AXIS TRAVEL
Slide Travel (X) 6.31 (160.5) in (mm)
Slide Travel (Y) 3.54 (90) in (mm)
Slide Travel (Z) 9.25 (235) in (mm)
Slide Travel (B) 30.31 (770) in (mm)
Rapid Feed (X1, X2, X3) 787 ipm
Rapid Feed (Y1, Y2, Y3) 314 ipm
Rapid Feed (Z1, Z2, Z3)
1574 ipm LEFT AND RIGHT SPINDLE
Spindle Speed 4500 rpm
Spindle Speed Range Stepless
Spindle Nose A2-6
TURRET
Number of Tool Stations 36
Number of Indexing Positions 72
ROTATING TOOL
Rotary System Individual Rotation
Spindle Speed 6000 rpm
Spindle Speed Range Stepless
Number of Rotation Tool Station 36
DRIVE MOTOR POWER
Main Spindle 20 H/P
Right Spindle 20 H/P
Driven Tool Spindle 7.5 H/P
GENERAL
Machine Weight 24255 (11000) lbs (kg)
EQUIPPED WITH:
Fanuc 31i A Control
Iemca VIP II Short Magazine Barfeed
Chip Conveyor
High Pressure Coolant
Parts Catcher
Parts Conveyor
Misc. OD & ID Tool Holders
Misc. Live Tool Holders
Collet Chuck Main
3-Jaw Chuck Sub
