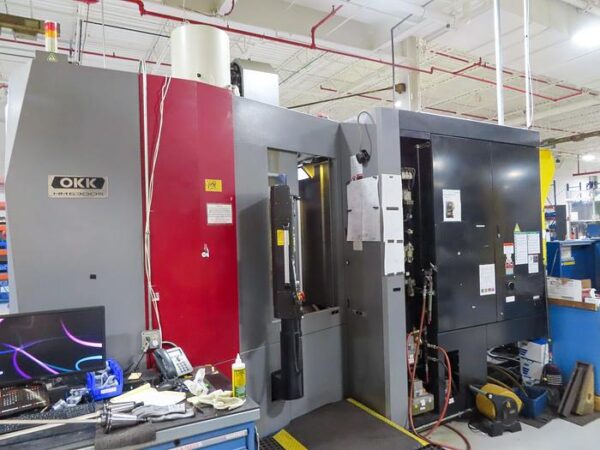

OKK HM6300S CNC 4-Axis Horizontal Machining Center
Pallet Size (2) 24.5″ x 24.5″
Pallet Rotation Full B-Axis
X-Axis Travel 31.50″
Y-Axis Travel 29.53″
Z-Axis Travel 34.65″
Spindle Motor 40 HP
Max. Spindle Speed 12,000 RPM
Spindle Taper CT# 50
Auto Tool Change Capacity 60 ATC
Rapid Feed Rates X, Y & Z 2953 IPM
Approx. Machine Weight 31,500 lbs
Description
Fanuc 31i A5, Spindle Chiller unit, CTS, Cool Jet System, Core Cooling Ballscrews, Probing, Lift Up Chip Conveyor, Coolant Pumps, Tombstones W/ Hydraulic Kurt vises, Mist Collector, Highly Rigid Roller Way Design, Compact for all types of machining
