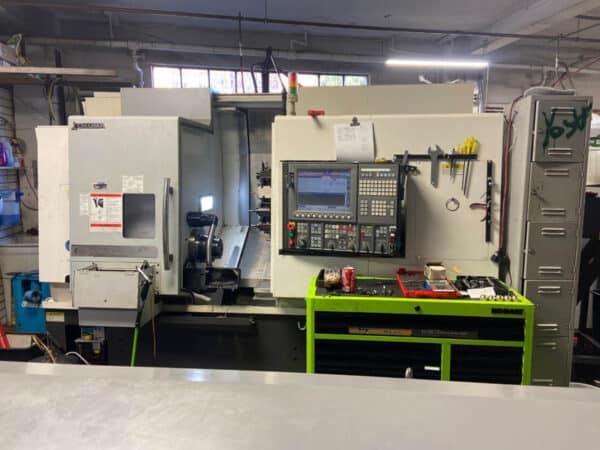

Okuma Genos L300MYW – 2015

2015 Okuma Genos L300-MYW
Multi-Axis CNC Lathe
Specifications:
Swing Over Bed 20.47”
Swing Over Saddle 6.69”
Max. Turning Diameter 11.81”
Max Mach Length 17.7”
Rapid Traverse Rated 787 / 984 IPM
Spindle Speed 25 ~ 3000 RPM
Main Motor (30 Min / Cont) 20HP / 15HP
Spindle Nose A2 – 8
Spindle Bore / Bar Capacity 3.15″/ 2.6”
Number of Tools 12 Position Turret

Equipped With:
OSP P300LR Control
Parts Cathcer
Barfeeder I/F Universal Type
Spare M-Codes 4 Sets
Rapid Traverse Override Switch
AOT IGF P2MW LB-EX/Genos Promo – Conversational Programming
Main Spindle 20 HP VAC Spindle Drive (420 lbf ft Torque)
3000 RPM / A2-8 Spindle Nose
12 Position 0.1 sec NC Radial Bolt on Turret
M Spindle 6000 RPM / 7.5 HP
High Pressure Coolant 8kW
Y Axis Compound Slide 3.94” Total Stoke
Hardened and Ground Box Ways X & Z
Side Discharge Chain Type Chip Conveyor
Manual Tool touch Setter
Parts Ejector
