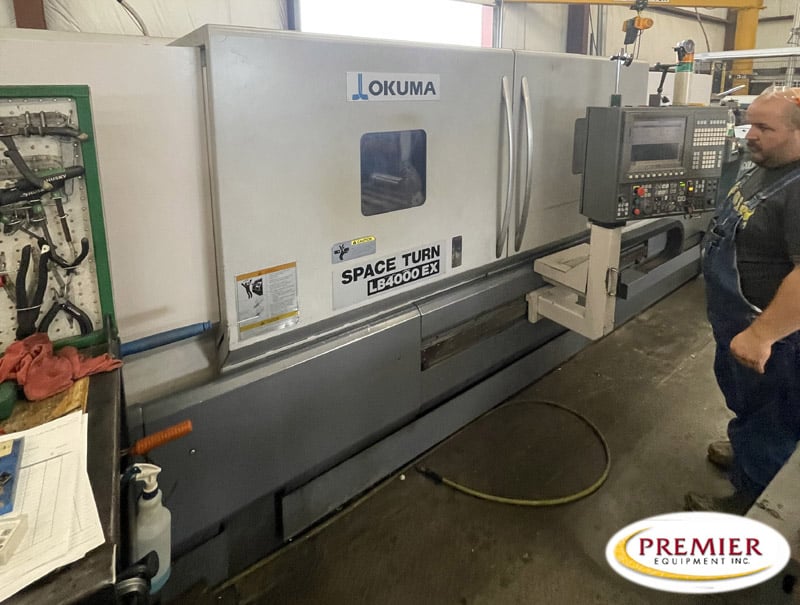

OKUMA LB-4000EX Big Bore – 2011

Okuma LB4000EX (80”) CNC Lathe
Specifications  (subject to buyer verification):
Main Spindle Chuck 12″
Maximum Swing 26.38″
Maximum Cutting Diameter 18.9″
Maximum Machining Length 84.6″
Distance Between Centers 85″
Main Spindle HP 50/40 HP
Spindle Torque 868 lbf-ft
Main Spindle RPM 3000 RPM
Main Spindle Nose A2-11
Spindle Bore 4.41”
Number of Tool Stations 12
X Axis Travel 11.81″
Z Axis Travel 88.19″
Rapid Traverse Rate X 989 IPM
Rapid Traverse Rate Z1181 IPM
Equipped With  (subject to buyer verification):
Tool Presetter
Hydraulic Steady Rest
Chip Conveyor
*12” Chuck (*Non Thru Hole Chuck Package Currently Installed)
