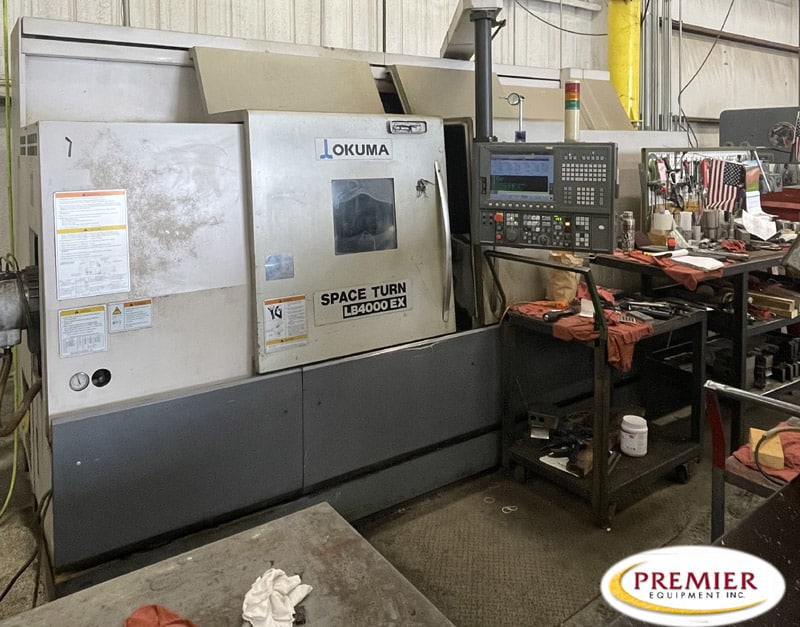

Okuma LB4000EXMY Multi-Axis CNC Lathe
Specifications (subject to buyer verification):
Main Spindle Chuck 15″
Maximum Swing 26.38″
Maximum Cutting Diameter 16.93″
Maximum Machining Length 59″
Distance Between Centers 59.06″
Bore 3.58″
Bar Capacity 3.1″
Main Spindle HP 30/40 HP
Main Spindle RPM 4200 RPM
Main Spindle Nose A2-8
Number of Tool Stations 12
Milling Spindle RPM 6000 RPM
X Axis Travel 11.81″
Y Axis Travel +/- 2.75″
Z Axis Travel 62.6″
Rapid Traverse Rate X 989 IPM
Rapid Traverse Rate Y 492 IPM
Rapid Traverse Rate Z 1181 IPM
Maximum Swing 26.38″
Maximum Cutting Diameter 16.93″
Maximum Machining Length 59″
Distance Between Centers 59.06″
Bore 3.58″
Bar Capacity 3.1″
Main Spindle HP 30/40 HP
Main Spindle RPM 4200 RPM
Main Spindle Nose A2-8
Number of Tool Stations 12
Milling Spindle RPM 6000 RPM
X Axis Travel 11.81″
Y Axis Travel +/- 2.75″
Z Axis Travel 62.6″
Rapid Traverse Rate X 989 IPM
Rapid Traverse Rate Y 492 IPM
Rapid Traverse Rate Z 1181 IPM
Equipped With (subject to buyer verification):
OSP
Chip Conveyor
Kitagawa B-15 Chuck (15”)
Tailstock
