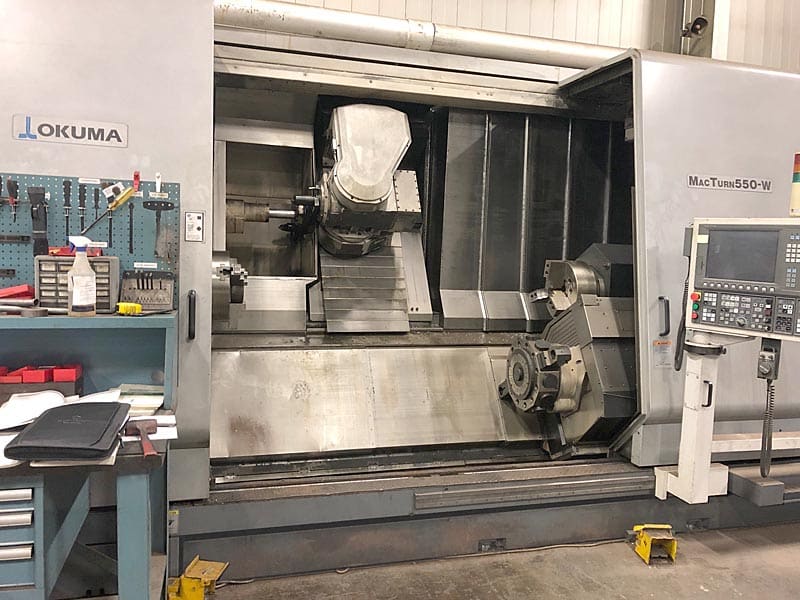

OKUMA MACTURN 550W BIG BORE Multi Axis CNC TURNING CENTER
SPECIFICATIONS:
CNC Control: yes
Type of CNC Control: Okuma OSP P200LA CNC Control
Max Swing Over Saddle: 28.34″
Max Machining Diameter: 28.34″
Max Working Distance Between Spindles: 88″
Chuck Size: 15″
X-Axis (Cross Travel of Universal Head): 25.98″
Z-Axis (Longitudinal Travel of Universal Head): 87.20″
Y-Axis (Travel of Universal Head) (Y1-Axis): 9.84″
B-Axis (Rotation of Universal Head): 210°
X2-Axis (Cross Travel of Lower Turret): 9.05″
Z2-Axis (Longitudinal Travel of Lower Turret): 82.67″
C1-Axis (Indexing Positions of Main Spindle): .001°
C2-Axis (Indexing Positions of Sub Spindle): .001°
Main Spindle Thru Hole: 5.12″
Main Spindle Nose: A2-11
Main Spindle Horsepower: 40 HP
Main Spindle Speed Range: 14-3800 RPM
Live Tooling Speed Range: 40-5000 RPM
Sub-Spindle Horsepower: 40 HP
Live Tooling Horsepower: 15 HP
Automatic Tool Changer Capacity: 50 Total
Approximate Machine Dimensions w/ Conveyor: 281″ x 122″
Approximate Machine Height: 123″
Approximate Machine Weight: 62,000 LBS
EQUIPPED WITH:
OKUMA OSP P200LA CNC Control, Full Contouring B-Axis Universal Head, Kitagawa B-15 15″ 3-Jaw Power Chuck, 12 Position Lower Turret Lathe Tool Indexing, Programmable Torque Limit, 50 Station Automatic Tool Changer Heavy Duty Sub-Spindle with 15″ Chuck, 88″ Between Spindles, Full C-Axis Spindle Rotation, BT-50 Spindle Taper, 3D Animation, Servo Link Spindle, Tool Life Management, Tool Wear Comp, Tool Setting Probe, Helical Cutting, Synchronous Tapping, Oil Chiller, Chip Conveyor & Coolant System.
