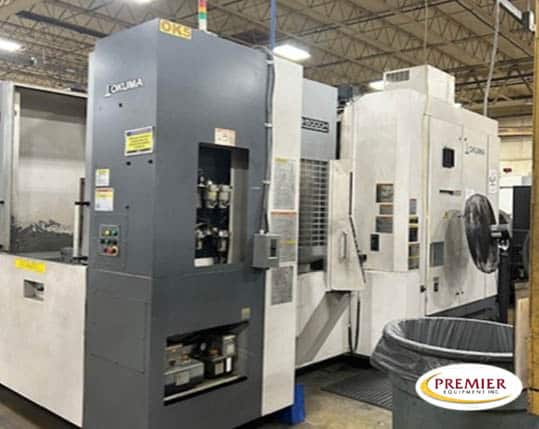

Okuma MB5000H CNC Horizontal Machining Center
Specifications (subject to buyer verification):
Pallet Size19.69” x 19.69”
Max Load1100 lbs
Indexing Angle.001 Degree – Full Rotary Table
Max Workplace Diameter31.5” x 39.37”
X-AXIS : 29.92″
Y-AXIS : 29.92″
Z-AXIS : 29.92″
Spindle Center to Pallet Top 1.97” – 31.89”
Spindle Nose to Pallet Center 5.31” – 35.23”
Spindle Speed 12,000 RPM
Rapid Traverse XYZ 2362 IPM
Spindle Drive 30/22 HP
Tool Shank Type CAT40
Magazine Capacity 146 ATC
Max Tool Diameter /Empty 2.76” / 5.91”
Max Tooll Weight 22 lbs
Floor Space WxDxH 106” x 187” x 113”
Weight 25,300 lbs
Equipped With (subject to buyer verification):
OSP-200MA CNC Control,
Full B-Axis Contouring
Spindle Speeds to 12,000 RPM
146-Position ATC
MP Systems High Pressure Coolant
Chip Conveyor
Losma Icarus Mist Collector
Cat 40 Taper
