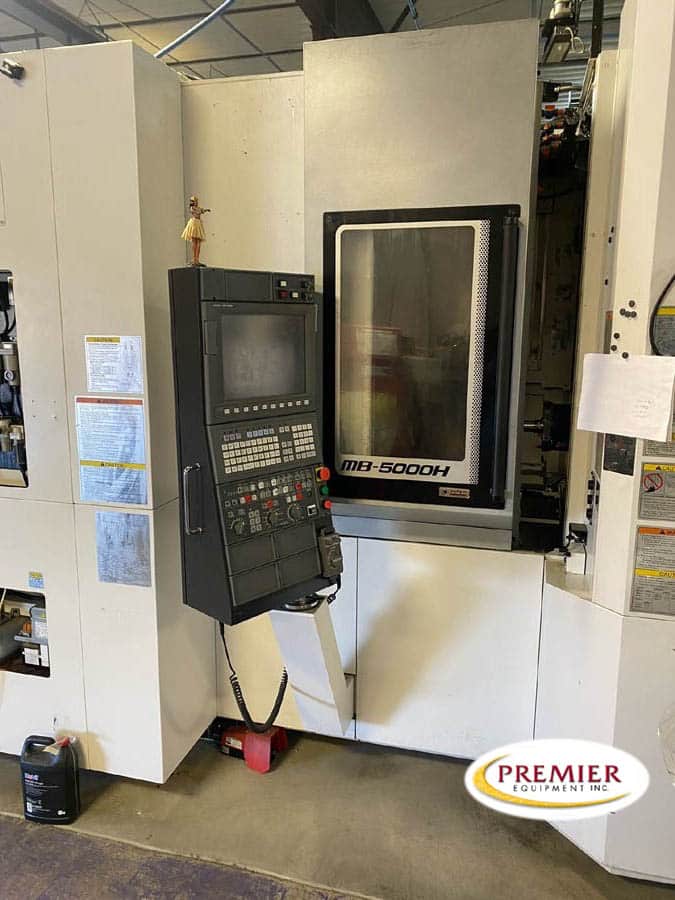

Okuma MB5000H CNC Horizontal Machining Center
Specifications (subject to buyer verification):
Pallet Size19.69” x 19.69”
Max Load1100 lbs
Indexing Angle.0001 Degree – Full Rotary Table
Max Workplace Diameter31.5” x 39.37”
X-AXIS : 29.92″
Y-AXIS : 29.92″
Z-AXIS : 29.92″
Spindle Center to Pallet Top 1.97” – 31.89”
Spindle Nose to Pallet Center 5.31” – 35.23”
Spindle Speed 50 – 15,000 RPM
Rapid Traverse XYZ 2362 IPM
Cutting Feedrate XYZ 2362 IPM
Spindle Drive 30/22 HP
Tool Shank Type HSK A63
Magazine Capacity 64 ATC
Max Tool Diameter /Empty 2.76” / 5.91”
Max Tool Length 17.72”
Max Tooll Weight 22 lbs
Floor Space WxDxH 106” x 187” x 113”
Weight 25,300 lbs
Equipped With (subject to buyer verification):
Okuma OSP-P300M Control
Hydraulic Fix I/F Link Type 8
Ballscrew Center Cooling
Tool Breakage Detection
Shower Coolant
64 ATC Chain – HSK A63
M-Codes 8 Spare
HSK-A63 15,000 RPM Spindle
Auto Gauging
Chip Conveyor Consep 2000II (Mayfran)
ABSO Scales for XYZ
Renishaw RMP60 HSKA63
MP System: R Systems Type AT RF 480V DP – High Pressure Coolant System – 1000 PSI
Through Spindle Coolant High Pressure
.0001 Degree Full Rotary Table
Color Display
Graphic
Herical Cut / One Direct Position
I/M Switch
3D R. Simulation
Area Machining
Playback (IMAP)
IMAP
Grahpic-IMAP
Hi-G
Machi. Mange
Syncro. Tapping
Manual. Gauging
TouchSens. MOVE
CoolantHigh Pressure 2
ShowerWash
Spindle Through Air
Overhead Hydraulic System
