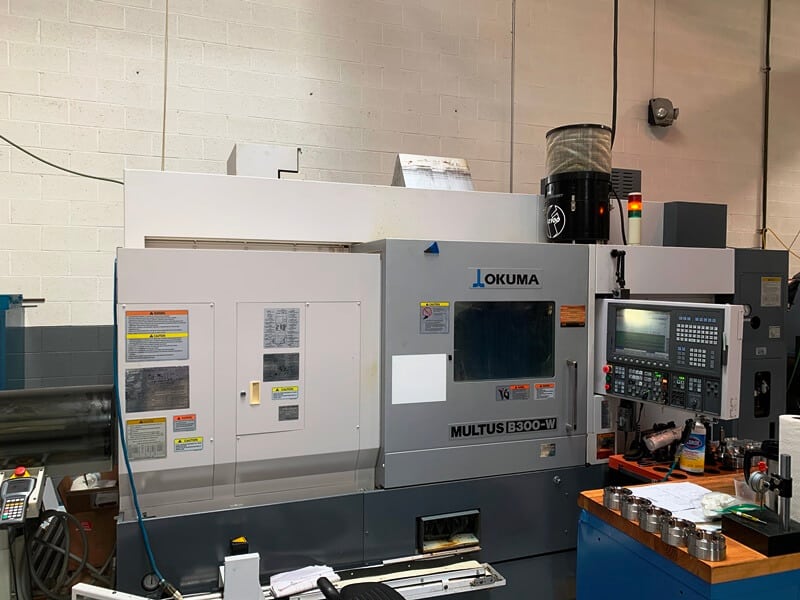

Okuma Multus B300W – 2008

OKUMA MULTUS B300W for sale
CNC MULTI-TASKING TURNING, AND MILLING CENTER W/ BAR FEEDER
Specs
Swing Over Bed 24.8″
Turning Diameter 17.72″
Turning Length 37″
Distance Between Centers 35.43″
Chuck Size 1, 2 10″, 8″
Spindle Nose 1, 2 A2-6, A2-6
Spindle Bore Diameter 1, 2 2.99″, 2.99″
Bar Capacity 1, 2 2.44″, 2.44″
Spindle Speeds 1, 2 5000, 5000 RPM
Spindle Horsepower 1, 2 20, 20 HP
B – Axis Head Indexing -30 ~ 195 Degree
B – Axis Milling Spindle Speed 10000 RPM
B – Axis Milling Spindle Taper Capto C6
B – Axis Milling Spindle Horse Power 15 HP
ATC For Milling Spindle 40 ATC
Tool Diameter 3.54″ / 5.12″
Tool Length 11.81″
Tool Weight 22 Lbs.
X – Axis Travel X1, X2, X3 22.83″
Z – Axis Travel Z1, Z2, Z3 36.8″
Y – Axis Travel Y1, Y2, Y3 6.29″
C – Axis Indexing 1, 2 .001 Degree
W – Axis Travel Sub Spindle 39.37″
Rapid Traverse Rates X1, X2, X3 1575 IPM
Rapid Traverse Rates Z1, Z2, Z3 1575 IPM
Rapid Traverse Rates Y1, Y2, Y3 1024 IPM
Machine Weight 22660 Lbs.
Equipped with
ATS ML 580 SHORT MAGAZINE BARFEED SYSTEM AUTOMATIC PARTS CATCHER
AUTOMATIC TOOL PRESETTER DRUM FILTER TYPE CHIP CONVEYOR
OSP P200L CNC CONTROL PARTS CONVEYOR
TRANSFORMER
