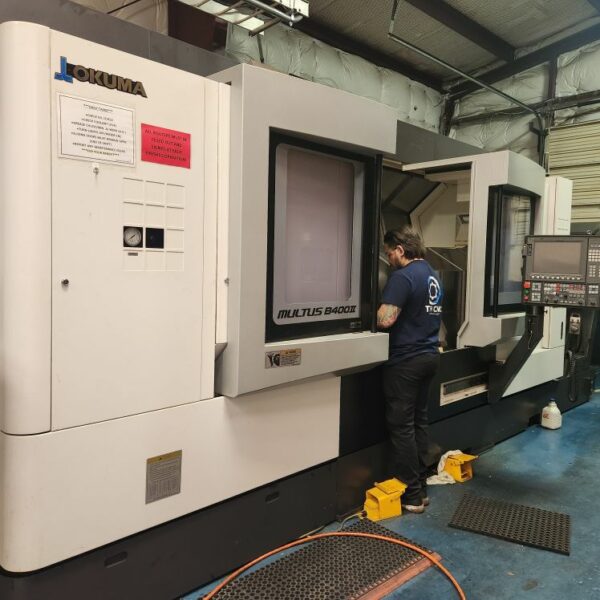

Okuma Multus B400W-II x1500 CNC Lathe
Capacity: mm (in)
Swing Over Saddle: ø710 (27.95) (Y=0)
Max Machining Dia.: ø710 (27.95)
Distance Between Centers: 1,500 (59.06)
Travels
X-Axis: 690 (27.17)
Z-Axis: 1,545 (60.83)
Y-Axis: 230 (9.06)
W-Axis: 1,550 (61.02)
C-Axis Control: 360 (min control angle 0.001)
B Axis Indexing Angle: 225 (−30 to 195 (min control angle 0.001))
Main Spindle
Spindle Speed: 38 to 3,800
Spindle Nose: JIS A2-11
Tapered Bore / Bearing Dia: ø80/ø120 (ø3.15/ø4.72)
Opposing Spindle
Spindle Speed: 38 to 3,800
Spindle Nose: JIS A2-11
Tapered Bore / Bearing Dia: ø80/ø120 (ø3.15/ø4.72)
Turret
Type: H1 ATC
No. Of Tool Stations: 1 for both L and M tools
ATC: 80 Capto C6
Milling Tool Spindle
Speed Range: 50 to 6,000 RPM
Torque: 65.7/44.8 (3 min/cont)
Rapid Traverse: X : 40,000 Z : 40,000 Y : 26,000 IPMS mm/min
NC TailStock
Spindle Bore Type: MT no. 5
Tailstock Travel: 1,550 (61.02)
Dimensions (LxWxH): 226.38″ ✕ 106.02″ X 118.11″
Weight (Approx): 34,100 lbs
Equipped With:
15 inch 3-Jaw Hydraulic Check Package
Mp High Pressure Pump
80 Atc Capto C6
C Axis Sync
4 Spare M Codes
Aot Ifg P4 Atc
Hyd Oil Tem Reg
1500 Bed Model 15.08
Bog Bore Sub A2-11
Conveyor
Auto Gauging Rpm60
Touch Setter Auto
Delete Work Ejector
