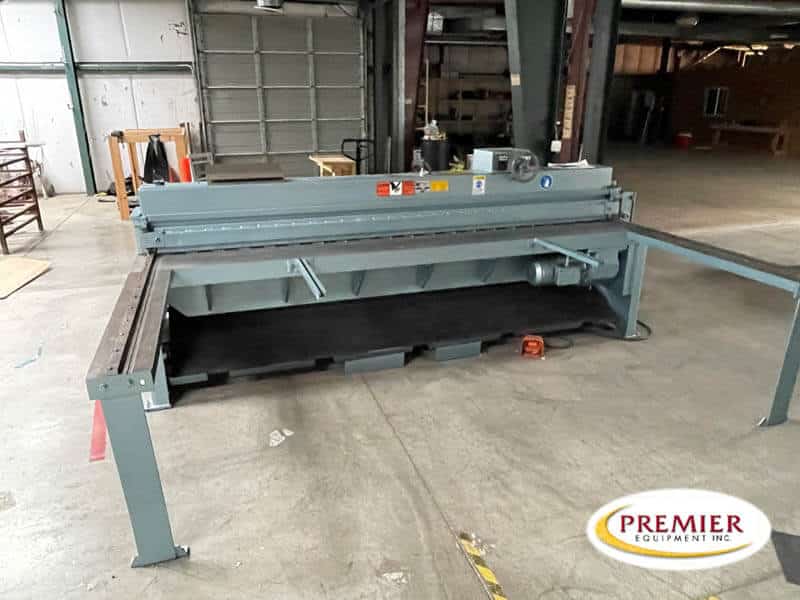

Roper Whitney 10M14E Mechanical Shear – 1992

Roper Whitney 10M14E Mechanical Shear
Specifications (subject to buyer verification):
WEIGHT 5500 lbs
MAXIMUM SHEARING CAPACITY, MILD STEEL
RATED MATERIALS AT 80,000 TENSILE/ 44,000 YIELD 14 ga/ 2,0 mm
MAXIMUM SHEARING CAPACITY, STAINLESS STEEL
RATED MATERIALS AT 90,000 TENILES/ 55,000 YIELD 18 ga/ 1, 25 mm
MAXIMUM CUTTING LENGTH 121.25”
BACK GAUGE RANGE 24 in
STROKES PER MINUTE 32
HOLD DOWN SYSTEM Solid bar with non-marring urethane insert
DRIVE MOTOR – 230/460V, 3-PHASE, 60 HZ 5 hp
BACK GAUGE MOTOR – 230/460V, 3-PHASE, 60 HZ 1/4 hp
OVERALL DIMENSIONS, LESS GAUGES 141 x 27 x 52 in
FLOOR SPACE, GAUGES IN POSITION 141 x 62 x 52 in
Approx. Weight 5,500 lbs
