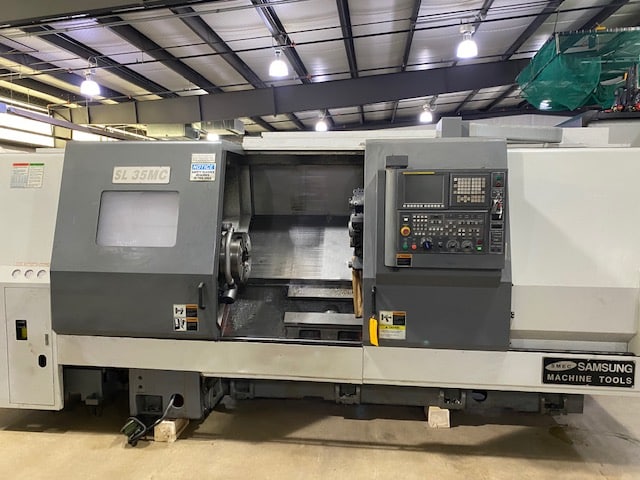

Samsung SL35BMC/1500 – 2012

SAMSUNG SL35BMC For sale
Specs
Swing Over Bed 23.6″
Turning Diameter, Shaft Diameter 16.5″
Machining Length 60.2″
Distance Between Centers 64.6″
Chuck Size 1, 2 15″
Spindle Nose 1, 2 A2 – 11
Spindle Bore Diameter 1, 2 4.1″
Spindle Bar Capacity 1, 2 3.5″
Spindle Speeds 1, 2 2500 RPM
Gear Ranges 2
Spindle Horsepower 1, 2 35 HP
X – Axis Travel 1, 2 10.8″
Z – Axis Travel 1, 2 63.2″
C – Axis Travel 1, 2 .001 DEGREE
Rapid Traverse Rates X1, X2 787 IPM
Rapid Traverse Rates Z1, Z2 964 IPM
Turret Configuration 1, 2 12
Turret Rotary Tool Spindle Speed 1, 2 4500 RPM
Turret Rotary Tool Horse Power 1, 2 10 HP
Tailstock Quill Diameter 5.1″
Tailstock Quill Travel 4.7″
Programmable Tailstock YES
Tailstock Travel 48.9″
Machine Weight 26,400 LBS.
Equipped with
(2) I.D. ROTARY HEADS (2) O.D. ROTARY HEADS
.001 FULL C-AXIS 15″ 3-JAW HYDRAULIC CHUCK
BARFEED INTERFACE CHIP CONVEYOR
FANUC OITD CONTROLS TOOL SETTER
