Sharp SVG-4323A – 2011

SKU: Sharp-SVG-4323A-2011 ,

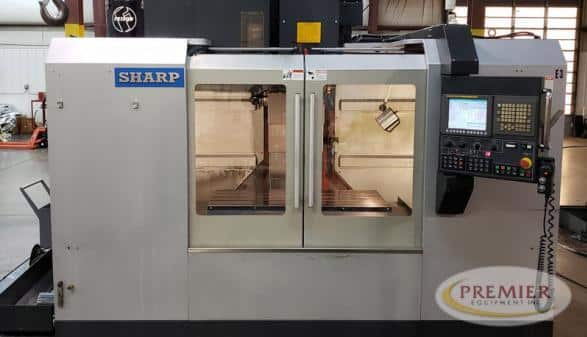

Sharp SVG4323A CNC Mill
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Travel Size (x, y, z) (displayed in inches) 43.3 x 23.6 x 25
Table Size (displayed in inches) 49.2 x 23.6
Table Load (lbs.) 2205
T Slots (Num x Width x Pitch)(inches) 5 x 0.71 x 4.9
Spindle Nose to Table (inches) 3.94 – 28.9
Spindle Center to Column (inches) 25.6
Spindle Speed (standard) (rpm) 30 – 8,000
Taper CAT 50
Transmission (Direct) 2 Speed Gear
Spindle Motor cont./30mins (hp) 20/25 hp
Rapid Traverse (x,y) (ipm) 945
Rapid Traverse (z) (ipm) 787
Tool Change System Capacity (Arm Type) 24
Max Tool Diameter (inches) 4.25
Max Tool Weight (lbs.) 33
Max Tool Length (in.) 11.8
Air Requirement (psi) 100
Machine Dimensions 144.7” x 115” x 109”
Net weight 17,640 lbs.

Equipped With (subject to buyer verification):
Fanuc OiMD
CAT50 25HP 8,000RPM Geared Head
24 Tool ATC
Chip Blaster JV40 Programmable Through Tool Coolant
Royal Mist Collector
Oil Skimmer
Rear Discharge Chip Conveyor
Bed Flushing Coolant
Flood Coolant
Cutting Air Blow
Box Way
Geared Head
4th Axis Drive and Interface Only
