Summit Machine Tool 24x120B Engine Lathe

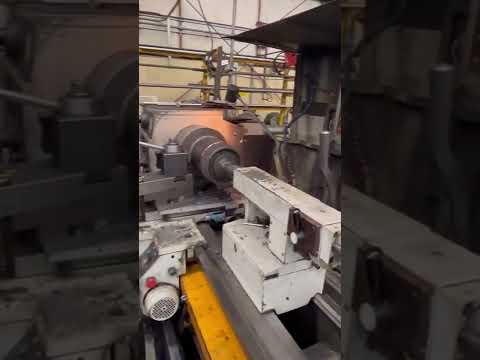

YouTube video

Summit Machine Tool 24x120B Engine Lathe
Specifications (subject to buyer verification):
Summit 24B Engine Lathe, purchased in 2006 from the manufacturer.
Model: 24 x 120B
Distance between centers: 120 inches
Spindle Front End: USAS B5.9D1 (Camlock Version ISO702-II-1975 ( E )
Power Supply: 3 x 440V/60Hz
Main Electrical Motor: 11kW 440V 1710 r.p.m.
Chuck Safety Guard
Rear Safety Guard, non-replaceable
Coolant System w/ motor pump, complete
Work light
Change Gear Z=57
Morse 5 Dead Center
Carriage stop-limiter
Independent four-jaw chuck 23-5/8” 24” Lathe
Follow Rest: ½” – 7-7/8”
Steady Rest: ½” – 6-1/8”
Thread cutting dial
Universal self-centering three-jaw chuck: 12” 3 Jaw 20” & 24” Lathe
Swing over bed: 17”
Spindle bore diameter: 4-1/8”
Spindle speed range: 1250 r.p.m.
Overall Length: 181”
Overall Width: 48”
Overall Height: 56”
Weight: 3635 lbs.
