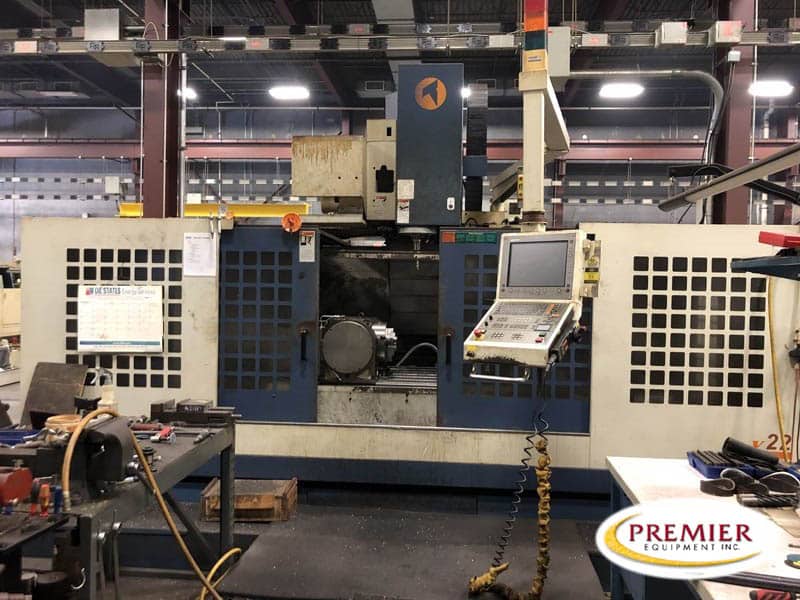

Takumi V22 with Tilting Rotary Table 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size 86.61″ x 31.49”
Max. Table Load 6613 lbs
X Axis Travel 86.6”
Y Axis Travel 42″
Z Axis Travel 29.53″
Spindle Nose to Table Surface 7.87” – 37.4”
Spindle Nose CAT50
Spindle Speed (Gear Type) 4500 RPM
Cutting Feedrate 196.8 IPM
Rapid Traverse Rates, X,Y,Z 472, 472, 393 IPM
ATC Capacity 32 ATC
Max Tool Weight 33 lbs
Max Tool Dimension 4.3” x 11.81”
Spindle Motor (30 min) 30 HP
Floor Space 22” x 149” x 131”
Weight 38,500 lbs
Equipped With (subject to buyer verification):
Heidenhain Control
Tsdakoma TN320 Tilting Rotary Table with 13” Chuck
32 ATC
OPtional 42″ Y-Axis Travel
OPtional 42″ Y-Axis Travel
