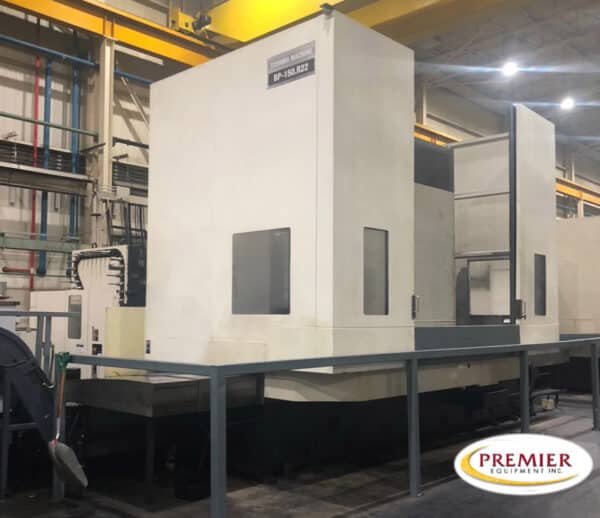

Toshiba BP150 R22 5.9” Spindle CNC Horizontal Boring Mill
Specifications (subject to buyer verification):
Rotary Table Size 70.8″ X 86.6″
Table Load Capacity 44,000 LBS.
Spindle Diameter 5.9″
Spindle Taper #50
Spindle Speed 2500 RPM
Main Motor 50 H.P. A.C.
X – Axis Travel….. 160″
Y – Axis Travel….. 100″
Z – Axis Travel….. 60″
W – Axis Travel….. 28″
B – Axis Travel Contouring .001 (360,000)
Cutting Feed Rate .04- 235 IPM
Rapid Feed Rate 393 IPM
Tool Changer Capacity 60 ATC
Max Tool Dia. 4.9″/9.4″
Max Tool Length 15.75″
Max.tool Weight 55 LBS.
Machine Weight 96,800 LBS
Equipped With (subject to buyer verification):
TOSNUC 999 CNC Control
1200 METERS PART PROGRAM STORAGE
ALL AVAILABLE MANUALS
B-AXIS TABLE (360,000 POSITIONS)
CHIP AIR BLOW
CHIP CONVEYOR
COOLANT THROUGH SPINDLE
FULL FACTORY ENCLOSURE
SCALES X, Y, Z
