Toshiba BTD-110H.R16 HBM – 2014

YouTube video

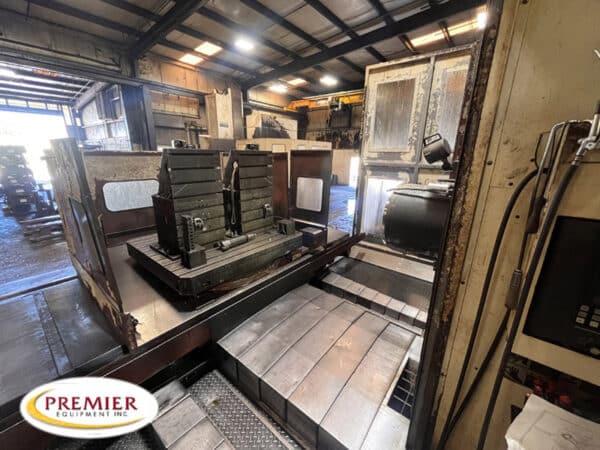

Toshiba BTD110H.R16 4.3” CNC Horizontal Boring Mill
Specifications (subject to buyer verification):
X-axis travel (Cross movement of table) 78.7”
Y-axis travel (Vertical movement of spindle head) 59.1”
Z-axis travel (Longitudinal movement of table) 57.1”
W-axis travel (Spindle extension) 19.7”
Distance from table surface to spindle center 0~59.1”
Distance from table center to milling spindle gauge plane 21.6~78.7”
Table working surface 55.1” x 63”
Table loading capacity 13,860 lbs
Table surface configuration (Pitch of T-slots 160 mm, size 22 mm) 9 T-slots
Minimum table indexing angle (B-axis) 0.0001Degrees
Spindle diameter 4.3”
Spindle speed range 5~3000 RPM
Equipped With  (subject to buyer verification):
Tosnuc 999 CNC Control
38 ATC
Chip Conveyor
