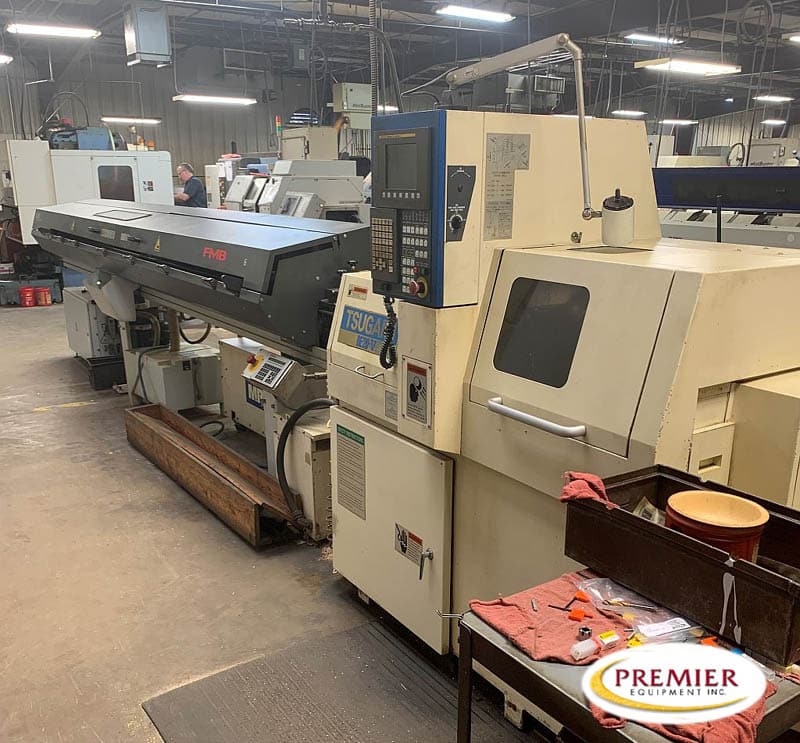

Tsugami BE20V CNC Swiss Lathe
Specifications (subject to buyer verification):
Controlled Axes: ……………… X1, X2, Z1, Z2, A
Barstock Range: ………………. 3 mm – 20mm
Max Workpiece Length: …………. 210 mm
……………………………. 170mm w/ Rotary Guide Bushing
……………………………. 45mm w/ Non-Guide Bushing
Max Main Spindle Drilling Diam: … 7mm
Max Main Spindle Tapping Diam: …. M6 x 1
Max Back Spindle Gripping Diam: … 20mm
Max Back Spindle Drilling Diam: … 7mm
Max Back Spindle Tapping Diam: …. M6 x 1
Max Rotary Tool Drilling Diam: …. 6mm (opt)
Max Rotary Tool Tapping Diam: ….. M5 x 0.8
Main Spindle Speed: …………… 200 – 12,000 rpm
Back Spindle Speed: …………… 200 – 12,000 rpm
Tool Size: …………………… 12 x 12 x 85mm
Tools:
OD: …………………………. 8
ID: …………………………. 4
Rotary Cross: ………………… 3,
Back: ……………………….. 4 Front Tool Post, 4 Back Tool Post
Rapid Traverse Rate: ………….. 32m/min (X: 24m/min)
……………………………. 1259 IPM (X1:945)
Motors:
Main Spindle: ………………… 1.5 / 3.7kW
Back Spindle: ………………… 1.5/2.2kW (built-in motor drive)
Rotary Tool: …………………. 0.75kW
Power Requirements: …………… 1.1 kVA
Air Requirements: …………….. 0.4 MPa or more
Air Discharge Rate: …………… 30 NL/min
Weight (approx): ……………… 3960 lbs
Dimensions (approx): ………….. 65″ x 43″ x 67″
Equipped With (subject to buyer verification):
Fanuc 31TiA
FMB Turbo 3-26 Barfeed with 10mm Guide Channel
160 M Program Storage
1000 PSI HP Coolant System
Bought new in 2007
All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.
