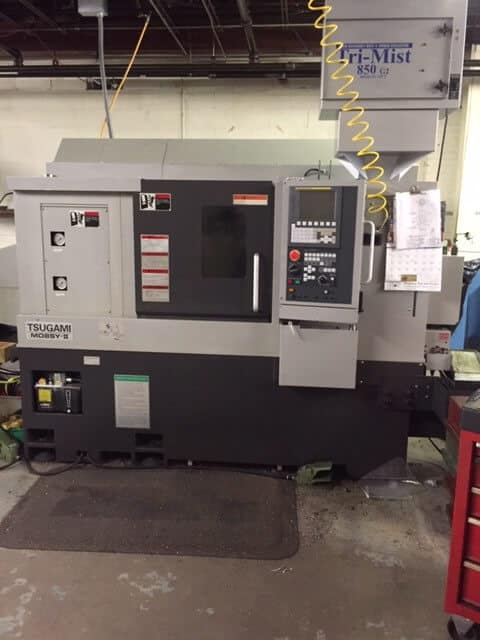

Tsugami M08SY – 2018

TSUGAMI M08SY CNC MUTI AXIS LATHE W/MILLING,Y AXIS, SUB SPINDLE & BARFEED
Specs
Turning Diameter 11.02″
Turning Length 14.96″
Distance Between Spindles 19.92″
Chuck Size 1, 2 8″
Spindle Nose 1, 2 A2 – 6, 140 FLAT
Spindle Bore Diameter 1, 2 2.87″
Bar Capacity 1, 2 2.5″, 2″
Spindle Speeds 1, 2 4500, 4500 RPM
Spindle Horsepower 1, 2 15, 10 HP
X – Axis Travel X1, X2, X3 8.7″
Z – Axis Travel Z1, Z2, Z3 15.75″
Y – Axis Travel Y1, Y2, Y3 3.94″
C – Axis Indexing 1, 2 .001, .001 Degrees
W – Axis Travel Sub Spindle 19.92″
Rapid Traverse Rates X1, X2, X3 945 IPM
Rapid Traverse Rates Y1, Y2, Y3 472 IPM
Rapid Traverse Rates Z1, Z2, Z3 1062 IPM
Turret Tool Positions 1, 2, 3 12
Turret Rotary Tool Speeds 1, 2, 3 5,000 RPM
Turret Rotary Tool Horse Power 1, 2, 3 5 HP
Machine Weight 13,007 LBS.
Equipped with
(2) CROSS DRILL HEAD (2) FRONT/BACK DRILL HEAD
8.4″ COLOR LCD ALL AVAILABLE MANUALS
ALL AVAILABLE TOOL HOLDERS CHIP CONVEYOR
CUSTOM MACRO FANUC OITD CNC CONTROL
PATRIOT 551 AUTOMATIC 12′ BARFEED SYSTEM RIGID TAP ON THE MILLING HEAD
THREAD CUTTING CYCLE RETRACT TOOL EYE
TRI MIST 850 G2 MIST COLLECT SYSTEM VARIABLE LEAD THREAD CUTTING
WORK CATCHER WITH CONVEYOR
