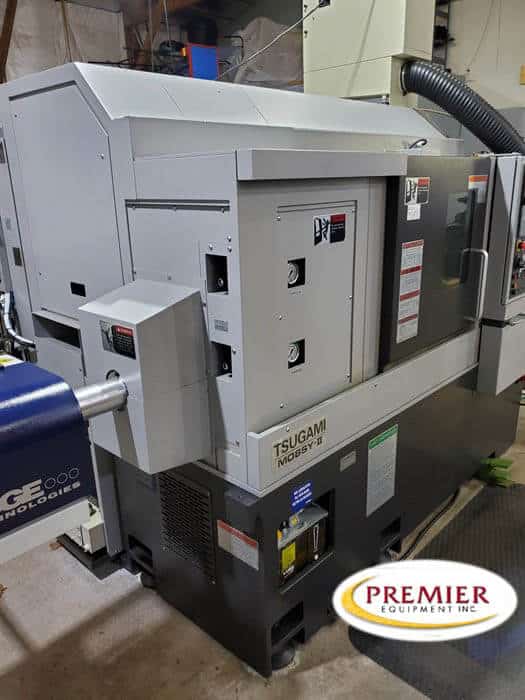

TSUGAMI M08SY – 2020

TSUGAMI M08SY CNC MUTI AXIS LATHE W/MILLING, Y AXIS, SUB SPINDLE
Specs
Turning Diameter 11.02″
Turning Length 14.96″
Distance Between Spindles 19.92″
Chuck Size 1, 2 8″, 6″
Spindle Nose 1, 2 A2 – 6, 140 FLAT
Spindle Bore Diameter 1, 2 2.87″
Bar Capacity 1, 2 2.5″, 2″
Spindle Speeds 1, 2 4500, 4500 RPM
Spindle Horsepower 1, 2 15, 10 HP
X – Axis Travel X1, X2, X3 8.7″
Z – Axis Travel Z1, Z2, Z3 15.75″
Y – Axis Travel Y1, Y2, Y3 3.94″
C – Axis Indexing 1, 2 .001, .001 Degrees
W – Axis Travel Sub Spindle 19.92″
Rapid Traverse Rates X1, X2, X3 945 IPM
Rapid Traverse Rates Y1, Y2, Y3 472 IPM
Rapid Traverse Rates Z1, Z2, Z3 1062 IPM
Turret Tool Positions 1, 2, 3 12
Turret Rotary Tool Speeds 1, 2, 3 5,000 RPM
Turret Rotary Tool Horse Power 1, 2, 3 5 HP
Machine Weight 13,007 LBS.
Equipped with
(1) BACK LIVE HEAD ER 25 (1) CUTOFF HOLDER 1.0″
(1) FRONT FACING ROTARY, (1) REAR FACING ROTARY (1) FRONT LIVE HEAD ER 25
(2) AXIAL ROTARY HEADS (2) BOPRING SLEEVES 1.0″
(2) BORING SLEEVES .75″ (2) CROSS LIVE HEADS ER 25
(3) DOUBLE TURNING HOLDERS (4) DOUBLE DRILL HOLDERS
8″, 6″ 3 JAW HYDRAULIC CHUCKS FRONT & REAR 8.4″ COLOR LCD
ALL AVAILABLE MANUALS ALL AVAILABLE MANUALS
ALL AVAILABLE TOOL HOLDERS AUTOMATIC PARTS CATCHER
BARFEED INTERFACE CHIP CONVEYOR
CUSTOM MACRO EDGE TECHNOLOGIES VS 65LE MAGAZINE BARFEED SYSTEM
FANUC OITD CNC CONTROL HP COOLANT FILTER
MIST BUSTER MIST COLLECTOR PATROL LIGHT
RIGID TAP ON THE MILLING HEAD TOOL EYE
VARIABLE LEAD THREAD CUTTING
