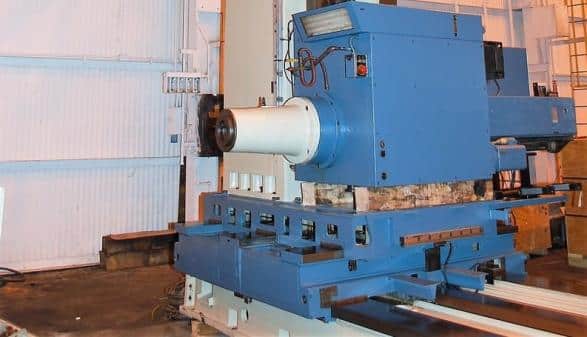

1994 Union BFP130 5.12″ CNC Floor Type Horizontal Boring Mill



CAPACITIES:

SPINDLE DIAMETER 5.12″

SPINDLE TAPER ISO 50

VERTICAL TRAVEL OF HEAD, Y-AXIS 118.11″

HORIZONTAL COLUMN TRAVEL, X-AXIS 275.59″

COLUMN INFEED, Z-AXIS 16.55″

SPINDLE TRAVEL, W-AXIS 35.43″

SPINDLE SPEEDS, 4-RANGES 5-1000 RPM

RAPID TRAVERSE, X & Y AXES 196.85 IPM

RAPID TRAVERSE, Z & W AXES 118.11 IPM

FEEDS, ALL AXES 98.42 IPM

APPROXIMATE OVERALL MACHINE WEIGHT 90,000 LBS

TOS 86.6″ X 86.6″ INFEEDING ROTARY TABLE:

TABLE SIZE 86.6″ X 86.6″

TABLE INFEED 59.05″

TABLE FEEDS, LONGITUDINAL .05 – 6.2 IPM

TABLE RAPIDS,LONGITUDINAL 78.11″ IPM

ROTARY, FEEDS @ 41.14″ DIA. .05 – 6.2 IPM

ROTARY, RAPIDS @ 41.14″ DIA. 78.74″

TABLE WEIGHT CAPACITY 39,600 LBS

NUMBER T-SLOTS 9

T-SLOT CENTER DISTANCE 9.84″

NUMBER CROSS SLOTS 2

CENTER HOLE DIAMETER 11.81″

CENTER HOLE DEPTH .39″

TABLE HEIGHT 37.4″

APPROXIMATE OVERALL TABLE WEIGHT 25,300 LBS

OVERALL DIMENSIONS 157.48″ X 103.2″

MACHINE EQUIPPED WITH:

HEIDENHAIN TNC 355 CNC CONTROL

SPINDLE SUPPORT

TOS INFEEDING ROTARY TABLE

TELESCOPING STEEL WAY COVERS ON X-AXIS

INDEPENDENT AC SERVO MOTOR DRIVES

HARDENED & GROUND WAYS

STEEL SLIDING WAY COVERS

67 HP SPINDLE DRIVE MOTOR
