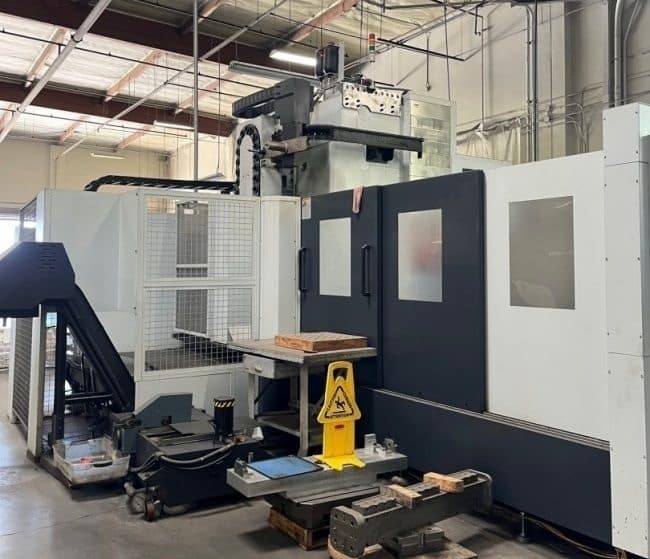

Yama Seiki BL3018S CNC Table Type Horizontal Boring Mill
SPECIFICATIONS:
SPINDLE SIZE 4.72″
X-HORIZ TVL OF TABLE 118.11″
Y-VERT TVL OF HEAD 70.86″
POWER 35 hp
RPM 2,400 RPM
TABLE-W 62.99″
TABLE-L 70.86″
SPINDLE TVL. 51.18″
CONTROL CNC
DIMENSIONS 300″ x 280″ x 176″ Tall
WEIGHT 75,000 Lbs
Fanuc Oi-MF cnc control
Z-Axis Travel (Column in and out) 51.18″
W-Axis Travel (Spindle in and out) 23.62″
Table load capacity 26,400 Lbs
Spindle taper BT-50
40 Position Tool Changer
2-Speed Gear Box for Spindle
X/Y/Z Linear Scales
Built in B-Axis Table 0.001 Degree
EQUIPPED WITH:
25” Kitagawa Rotary Table Model TR-630 including angle plate for mounting rotary table
Rotary table and complete 6th axis interface (4+2 axis) for rotary table listed above are included.
Table is controlled through machine’s Fanuc control in 0.001 degree increments.
1000 PSI Coolant through spindle system including all hardware and All Cool Model R58i pump
with programmable variable flow are both included.
Full enclosure (no roof)
Big Plus Spindle
Oil Skimmer
