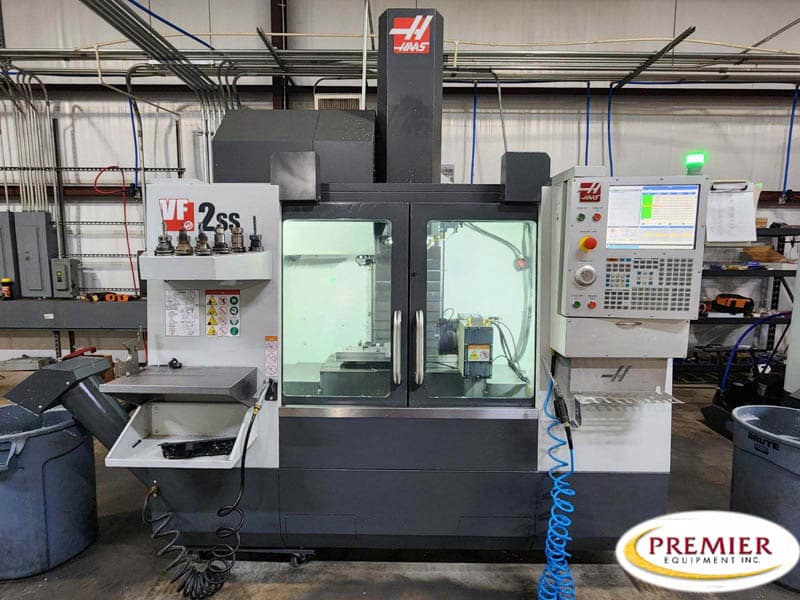

Haas VF2SS with Rotary Table CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis 30.0”
Y Axis 16.0”
Z Axis 20.0”
Spindle Nose to Table (~ max) 24.0”
Spindle Nose to Table (~ min) 4.0”
SPINDLE
Max Rating 30.0 hp
Max Speed 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Taper 40
TABLE
Length 36.0”
Width 14.0”
Type SMTC
Capacity 30+1
Equipped With (subject to buyer verification):
Haas CNC Control
Thru Spindle Coolant
Chip Auger
WIPS
HRT-210 Rotary Table
