AgieCharmilles Form 300 EDM – 2017

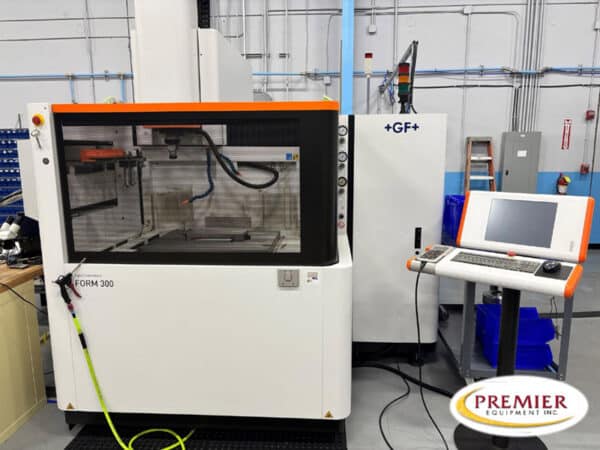

AgieCharmilles Form 300 CNC EDM
Specifications (subject to buyer verification):
Axis Travel (X, Y, Z): 23.62×15.75×17.72 in
Table Size (X, Y): 29.53×23.62 in
Traversing Speed (X, Y) Selectable: 19.7 ft/min
Traversing Speed (Z):  32.8 ft/min
X,Y, Z Axes Display Resolution: 0.000002 in
Permissible Workpiece Weight: 3,527 lbs
Internal Tank Dimensions (W x D x H): 47.2×31.8×18.50 in
Programmable Tank Level: 0 – 17.72 in
Distance Table to Quill min/max: 3.94 – 17.72 in
Accura C-axis Accuracy:
Accura C-axis rotation speed:  0 – 100 rpm
Max. Current Load for Accura C-Axis:  Static 104 amps/rotating 80 amps
Maximum Flushing Pressure C-axis:  1.5 bar
Permissible Electrode Weight with/without chuck: 110/220 lbs
Max. Allowable Tool Weight for Toolchanger: 11 lbs per tool change position
Dielectric Capacity: 184 gallons
Heat Exchanger:  Standard
Number of dielectric filters:  6 paper cartridges
Generator: ISPG
Peak Amperage: 80 amps (140 optional)
Surface Integrity: No white layer
Surface Finish: Down to 0.08 Ra μm
Control: New AC FORM HMI
Communication:  Ethernet RJ45
Machine Dimensions (X,Y,Z):  89.17×83.07×109 in.
Machine Weight: 9,920 lbs
Equipped With  (subject to buyer verification):
New AC FORM HMI Control
6-Tool Changer
System 3R Type Holders
**No Chiller
