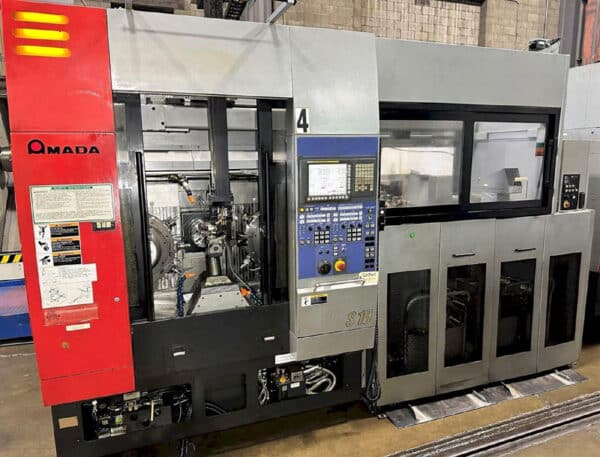

AMADA S10 SINGLE SPINDLE/ DUAL TURRET 7-AXIS CNC LATHE
SPECIFICATIONS:
CNC Control: yes
Type of CNC Control: Fanuc 31i Model B CNC Control
# Axis: 7
Chuck Size: 6″
Max Swing Over Bed: 12.20″
Max Turning Diameter: 10.24″
Max Distance Between Centers: 10.63″
X-Axis (Cross Travel of Left Turret): 5.91″
Z-Axis (Longitudinal Travel of Left Turret): 13.39″
X2-Axis (Cross Travel of Right Turret): 5.91″
Z2-Axis (Longitudinal Travel of Right Turret): 13.39″
Spindle Horsepower: 20 HP (30 minute) / 14 HP (Continuous)
Max Spindle Speed: 5,000 RPM
X-Axis Cross Travel Rapid Traverse Rate: 994.88 IPM
Z-Axis Longitudinal Rapid Traverse Rate: 1,260 IPM
Left Turret Live Tooling Horsepower: 6 HP
Left Turret Live Tooling Speed Range: 6,000 RPM
Left Turret Tool Capacity: 12
Right Turret Tool Capacity: 12
Tailstock?: yes
Approximate Machine Dimensions: 66.9″ x 78.7″
Approximate Machine Height: 80″
Approximate Machine Weight: 12,500 LBS
EQUIPPED WITH:
Single Spindle/ Dual Turrets with Live Tooling, Fanuc 31i Model B CNC Control, 6″ Howa H3YS6 Power Chuck, 12 Position Left and Right Turrets w/ Live Tooling, Gantry Loading & Unloading System, Remote Handwheel, Part Gauging, Coolant System & Chip Conveyor.
