AWEA BL 2018 FM HORIZONTAL BORING MILL WITH RAM TRAVEL
X-Axis travel 2,000 mm (79″)
Y-Axis travel 1,800 mm (68″)
Z-Axis travel 1,300 mm (51″) Table in/out
W-Axis travel 600 mm (24″) Ram in/out
Table Size 1600×1800 mm (65″ x 72″) Rotary
Table Load Capacity 15,000 kg (33,000 Lbs.)
Spindle Speed 6,000 RPM
Spindle Taper CAT50
Tool Magazine Capacity 40 ATC
Max. Tool Length 400 mm (16″)
Machine Weight 66,000 Lbs.
Equipped With:
Fanuc 18 iMB Control
Coolant Through Spindle
Chip Conveyor
Large Coolant Tank With Pump
Traveling Column For X Travel

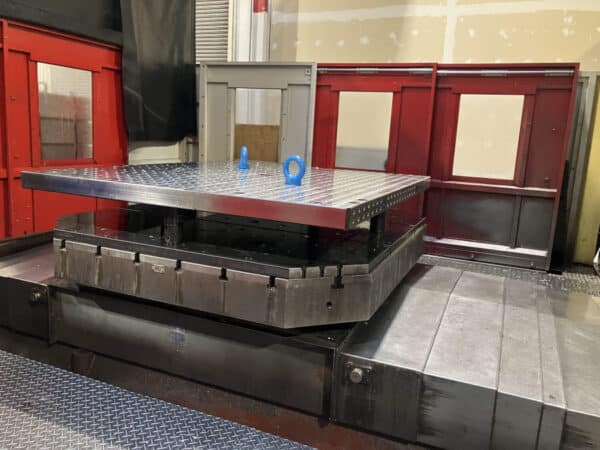

Rotary Table
Coolant Tank
All Telescoping Stainless Steel Way Covers
Note: this machine has no quill travel
only ram (W) travel in/out
