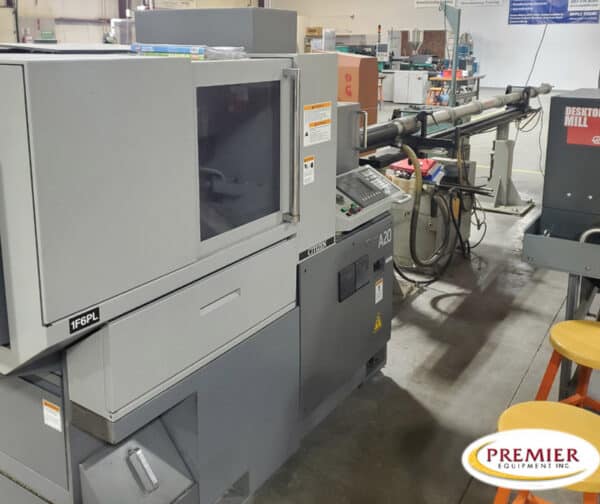

Citizen A20VIPL Swiss-Type Lathe
Specifications (Subject to Buyer Verification):
number of axes: 7
Main Spindle: Bar Stock Max .812” (Spindle Sleeve ID is .840”)
Sub Spindle: .790 max (Spindle Sleeve ID is .800)
Rotary: 1.25” Max Saw
maximum turning diameter (main spindle): 20 mm (.787”)
maximum turning length: 165 mm (6.49”)
maximum turning diameter (sub-spindle): 20 mm (.787”)
maximum capture length: 80 mm (3.14”)
bar diameter range: 2-20 mm (.078 – .787”)
rapid traverse in X1 axis: 708 IPM
rapid traverse in Y1, Z1, X2, Z2 axes: 1259 IPM
C-axis indexing (main spindle): every 0.001°
C-axis indexing (sub-spindle spindle): every 0.001°
maximum rotational speed (main spindle): 8000 rpm
maximum rotational speed (sub-spindle spindle): 8000 rpm
maximum drive power (main spindle): 3.7 HP
maximum drive power (sub-spindle): 1.5 HP
Number of Tools: 18
Turing: 7 (Tool #4 is 5/8”)
Cross Drilling / Milling: 3
Front Work: 4
Back Work: 4
maximum rotational speed of driven tools: 6000 rpm
driven tools drive power: .75 HP
Equipped With (Subject to Buyer Verification):
CNC
Main Spindle Indexing (1 Deg)
Main Spindole Full “C” Axisw (.001 “)
Back Spindle Indexing (1 Deg.)
Back Spindle Full “C” Axis (.001”)
Workpiece Separator (Chute)
Back Spindle Air Blow Unit
Kncokout
Automatic Power Off
Parameter List
Back Spindle Long Workpiece Adaptor
Coolant Oil Flow Detector
Cut-off Breakage Detector
Middex Tool Monitoring System
Chip Conveyor
LNS 3.20 HS-4.8 Barfeed
