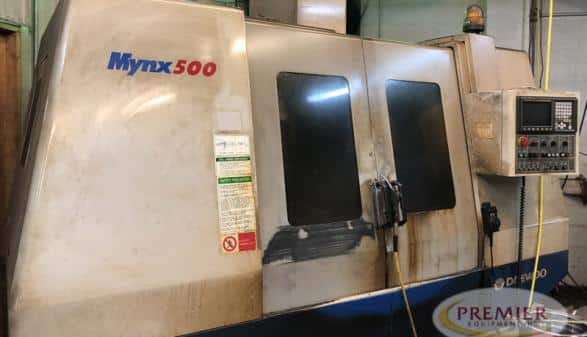

Daewoo Mynx 500 CNC Mill
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Working Surface47.2″ x 19.7″
Table Load Capacity1764 lbs
X Axis Travel40.2″
Y Axis Travel20.1″
Z Axis Travel22.6″
Distance from Table Surface to Spindle Gage Line7.9” – 30.5”
Distance from Column front Surface to Spindle Center20.5”
Magazine Capacity24 ATC
Rapid Traverse Rates X & Y / Z945 / 787 IPM
Spindle TaperCAT 40
Spindle Speed8,000 RPM
Main Motor20 HP
Max Tool Diameter3.54” / 5.9”
Max Tool Length / Weight9.8” / 17.6 lbs
Floor Space139” x 136” x 123”
Weight15,432 lbs
Equipped With (subject to buyer verification):
Fanuc Series 21-M Control
Box Way Construction All Axis
Powerful 20 hp high torque spindle motor
Manual Pulse Generator
Spindle Orientation
Rigid Tapping
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Work light
Chip Conveyor
