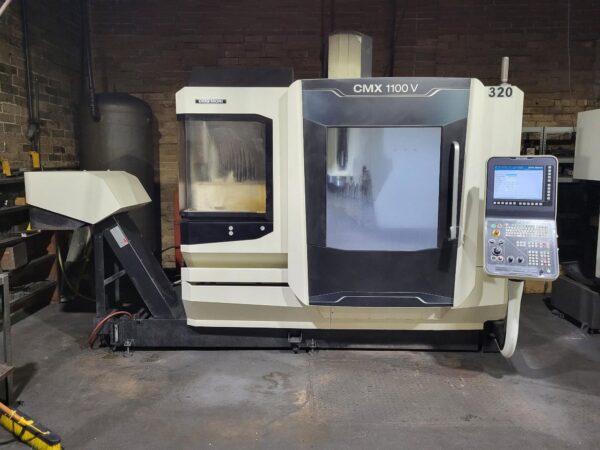

DMG Mori CMX-1100V
Working surface 55.12” x 22.05”
Loading capacity 2205 lbs
Travel
X-axis travel 43.31”
Y-axis travel 22.05”
Z-axis travel 20.08”
Distance from table surface to spindle nose 4.72–24.80”
Spindle
Max. spindle speed: 12,000 RPM
Feedrate
Rapid traverse X/Y/Z 1417 / 1417 / 1181 IPM
Cutting Feedrate .04 – 787 IPM
ATC
Tool interface: CAT40
Tool storage capacity: 30
Max. tool diameter
with adjacent tools 3.15”
without adj. tools 4.9”
Max. tool length 11.81”
Max. tool weight 17.6 lbs
Tool changing time
Tool-to-tool s 1.32 /1.46
chip-to-chip s 3.70
Motor
Spindle Motor 20/15 HP
Machine size
Floor space width×depthxHeight 150×108.54 x 115
Machine weight (net) 13,000 lbs
Equipped With:
DMG Mori Slim Line Control
12,000 RPM Spindle
Chip Conveyor
Through Spindle Coolant
Coordinate System Rotation
Scaling
Cylindrical Interpolation
