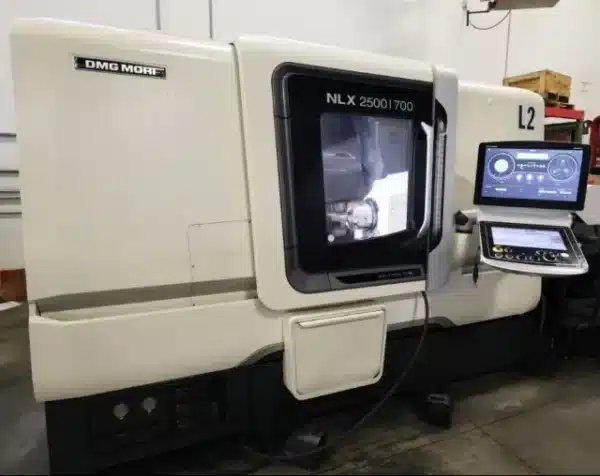

DMG MORI NLX2500SY/700 5-Axis CNC Turning Center
SPECIFICATIONS:
Chuck Size Main/Sub 10”/6” 3 Jaw Hydraulic Power Chuck
Swing Over Bed: 36.4″
Swing Over Front Cover: 29.7″
Max. Turning Diameter: 14″
Max. Turning Length: 27.7″
Bar Work Capacity: 3.1″
X Axis Travel: 10.2″
Y Axis Travel: 3.9<+/-2.
Z-Axis Travel: 31.3″
Headstock 2 Travel B-Axis: 28.9″
Max. Spindle Speed, Main: 4,000 RPM
Max. Spindle Speed , Sub: 6,000 RPM
Thru Spindle Hole Dia., Main: 3.6″
Thru Spindle Hole Dial, Sub: 1.7″
Number of Tool Stations: 12
Max. Rotary Tool Speed: 10,000 RPM
Rapid Traverse Rate X,Z,B: 1,181 IPM
Rapid Traverse Rate Y: 393.7 IPM
Rapid Traverse Rate C: 400 Min.
Equipped With:
Celos ERGOline Mitsubishi M-730UM Control
Tool Presetter for Main and Sub Spindle
Parts Catcher
All Live and Turret Tooling as shown in pictures
Chip Conveyor
Machine Dimensions: 132″ x 83″ x 87″
Conveyor Dimensions: 157″ x 83″ x 60″
Weight: 10,000 Lbs.
