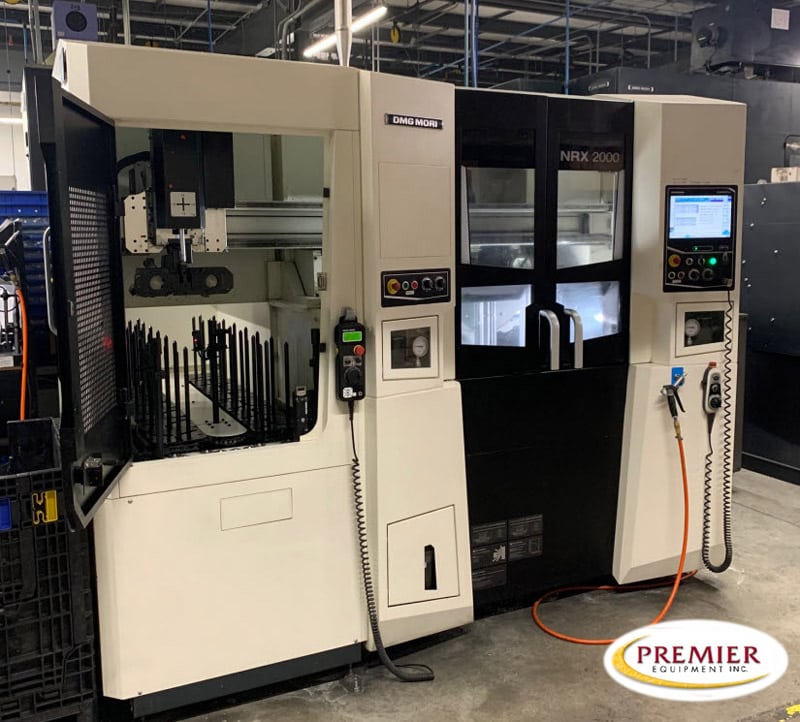

DMG Mori NRX-2000 Twin Spindle Lathe
Specifications (subject to buyer verification):
Max. turning diameter7.0 in.
Standard Turn Diameter 4.7”
Max. turning length 3.9 in.
X-Axis Travel 3.9”
Z-Axis Travel 8.7”
No. of Spindles 2
Max Spindle Speed No.1: 5000 RPM / No.2: 6000 RPM
Spindle Nose A2-5
No. of Turrets 2
Tool Stations No 1: 8 / No. 2: 8
Rapid Traverse 1181 IPM X1,X2,Z1,Z2
Spindle Motor 40% / 30 min / cont: 10 / 10 / 7.5 HP
Floor Space W x D x H: 98” x 119.5” x 82.7”
Weight 12,300 lbs
Equipped With (subject to buyer verification):
DMG Mori COMPACTline (Mitsubishi M730UM))
(2) 8 station Turrets
Chip Conveyor side discharge hinge
High Pressure Coolant
Air blow for chuck
Workpiece stocker 14 station
All available tooling and manuals
(2) 8” Kitagawa Solid Chucks
