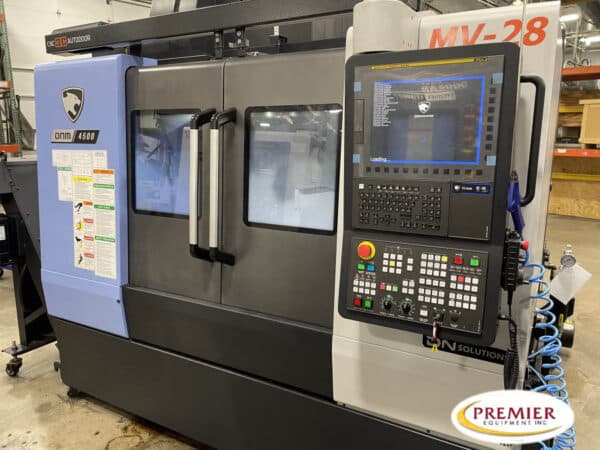

DN Solutions DNM-4500 CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size39.4” x 17.7”
Table Load Capacity1322 lbs
Distance from Spindle Nose to Table Top5.9” – 26”
X axis travel 31.5”
Y axis travel 17.7”
Z axis travel 20.1”
Spindle Speed 8,000 RPM
Taper 40
Spindle motor 25/15 hp
Maximum Spindle torque 86.9 ft-lbs
Rapid Traverse Rate (X,Y / Z) 1653 / 1417 IPM
Number of Tools 30
Equipped With (subject to buyer verification):
DN Solutions Fanuc i Plus
Chip Conveyor
Manual Pulse Generator
Auto Door
