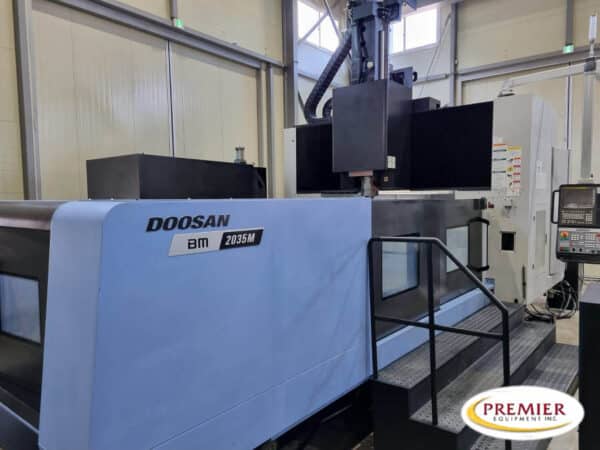

Doosan BM-2035M Gantry type machining center
Table size : 72.8” x 137.8”
Load Capacity: 10 ton
XYZ : 137.8” x 80.7” x 31.49”
Distance between columns : 86.61”
Table to spindle nose : 7.87” – 39.37”
Spindle speed : 12,000 rpm
Main motor : 35 / 40 HP
Taper: 50 taper
No. of ATC Stations: 40 tool ATC
Fanuc 31iB control
40 tool ATC
Scales XYZ
Tool setter
Spindle thru coolant
Chip conveyor
