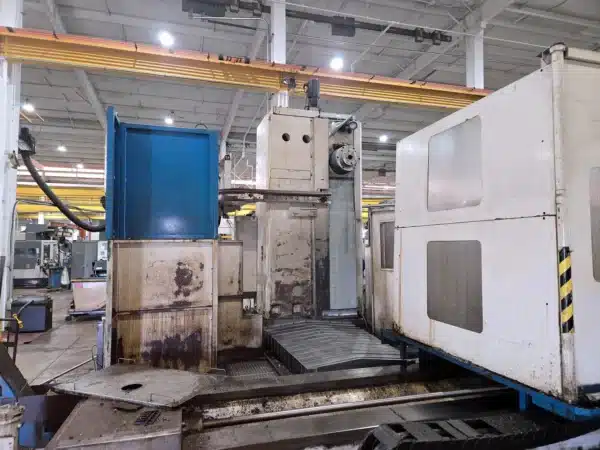

Doosan DB-130CX CNC Horizontal Boring Mill
machine specification
SPINDLE DIAMETER 5.12″
TABLE WEIGHT CAPACITY 33,000 LBS
SPINDLE SPEED 2500 RPM
SPINDLE MOTOR 35 HP
TABLE SIZE 70.9″ x 63″
X AXIS TRAVEL 118″
Y AXIS TRAVEL 78.8″
Z AXIS TRAVEL 63″
W AXIS TRAVEL 27.6″
PALLET INDEXING (FULL B AXIS) 0.001 Degree
SPINDLE TAPER CAT 50
DISTANCE FROM SPINDLE TO TABLE 0 to 78.7″
DEGREE OF INDEXING 90 Degrees ( By Rotary Table & Indexing Pin)
TOOL CHANGER POSITIONS 60 Pocket
VOLTAGE 240 V
APPROX. DIMENSIONS FOR PLACEMENT 311″ L x 265″ W x 181″ H
Option / equipped with
Fanuc 18i-MB CNC Control
Built In B-Axis Rotary Table
Chip Conveyor
Coolant Splash Guards
Telescopic Way Covers
