DOOSAN DNM 5700 4-Axis CNC Vertical Machining Center
SPECIFICATIONS:
# AXIS: 4
TABLE-L: 55.1″
TABLE-W: 22.4″
MAX TABLE LOAD CAPACITY: 2,205 lb
X-AXIS (LONGITUDINAL TRAVEL) : 41.3″
Y-AXIS (CROSS TRAVEL) : 22.4″
Z-AXIS (VERTICAL TRAVEL) : 20.1″
MAX CLEARANCE TABLETOP TO SPINDLE NOSE: 26″
MIN CLEARANCE TABLETOP TO SPINDLE NOSE: 5.9″
RAPID TRAVERSE RATE (X, Y, & Z AXIS) : 1,417 in/min.
SPINDLE POWER: 25 hp
SPINDLE SPEED RANGE: 0 – 15,000 RPM
SPINDLE TAPER: 40
COOLANT THROUGH SPINDLE: Yes
AUTOMATIC TOOL CHANGER CAPACITY (ATC) : 40
AUTOMATIC TOOL CHANGER STYLE: Side-Mount
MACHINE HOURS: 1800
DIMENSIONS: 120″ x 118″ x 106″
WEIGHT: 15,000 LBS
EQUIPPED WITH:

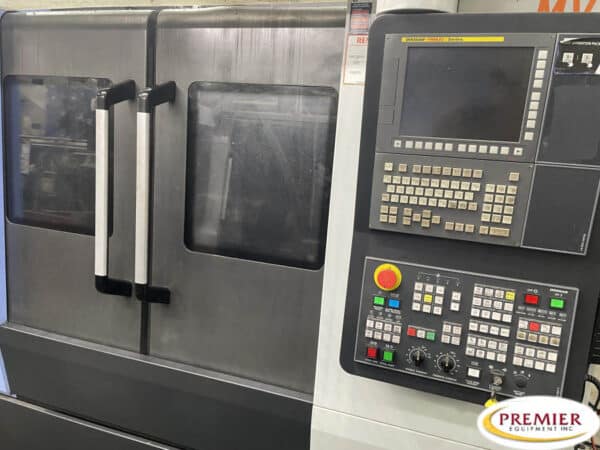

Doosan-Fanuc i Series CNC Control
15,000 RPM Spindle (upgraded option)
40 Station Tool Changer (upgraded option)
8″ Komo RWE-160R 4th Axis Rotary Table
Flood Coolant
Through Spindle Coolant
Chip Conveyor
Coolant Tank w/ Oil Skimmer
Renishaw OMP60 Probe Included (Broken)
All Available Manuals Included
All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.
Price: $
