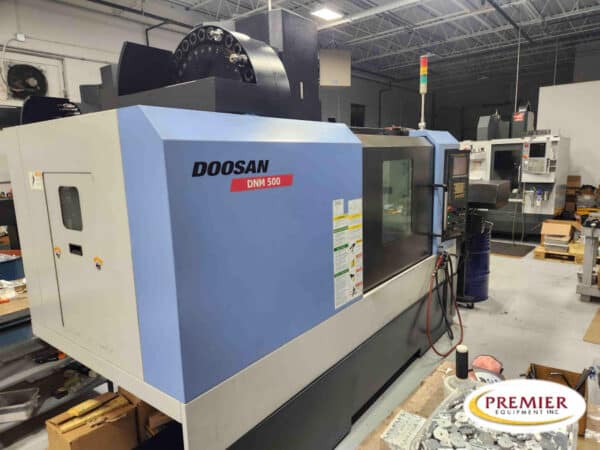

DOOSAN DNM-500 CNC Mill
SPECIFICATIONS:
X-AXIS TRAVEL ……………. 40.2″ / 1020mm
Y-AXIS TRAVEL ……………. 21.3″ / 540mm
Z-AXIS TRAVEL ……………. 20.1″ / 510mm
TABLE SIZE ………………. 47.2″ X 21.3″ / 1200 X 540mm
MAXIMUM TABLE LOAD ……….. 1763 LBS / 800 kg
SPINDLE NOSE TO TABLE TOP …. 5.9″ – 26″
SPINDLE CENTER TO COLUMN ….. 23.1″
SPINDLE MOTOR ……………. 20 HP
MAX SPINDLE SPEED ………… 8,000 RPM
SPINDLE TAPER ……………. CAT 40
AUTOMATIC TOOL CHANGER ……. 30 TOOLS
RAPID TRAVERSE RATES X-Y/Z … 1417/1181 IPM
APPROXIMATE MACHINE DIMS ….. 90″ X 134″ X 106.5″
APPROXIMATE MACHINE WEIGHT … 14,500 LBS
EQUIPPED WITH:
FANUC 0I SERIES CNC CONTROL
MANUAL GUIDE I, MACRO EXECUTOR,
REMOTE JOG HANDLE MPG
COOLANT THRU SPINDLE
RENISHAW PART & TOOL PROBE
DUAL AUGERS
CHIP CONVEYOR
30 STATION SIDE MOUNT ATC
SPINDLE CHILLER
20 HORSE POWER SPINDLE MOTOR
