Doosan DNM500 – 2012

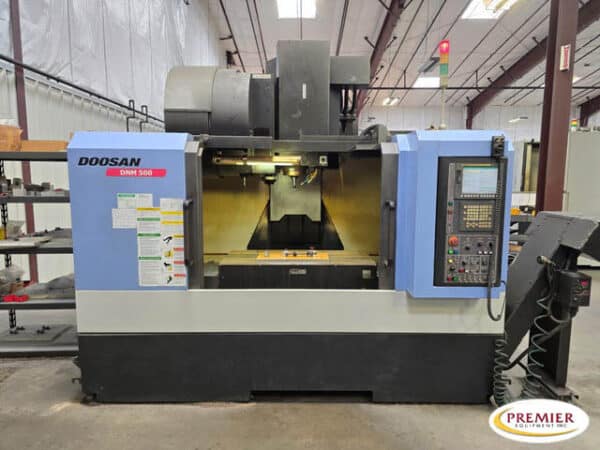

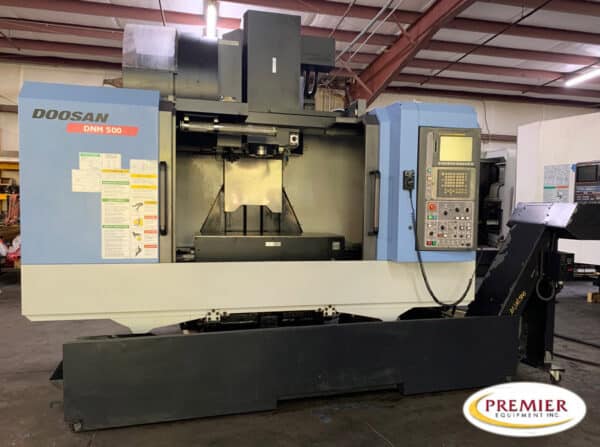

2012 DOOSAN DNM 500

TRAVELS:
–X: 40.19″
–Y: 21.28″
–Z: 20.1″
TABLE SIZE: 47.28″ x 21.28″
TABLE LOAD CAPACITY: 1,764 LBS
TABLE TOP TO SPINDLE NOSE: 5.9″ – 30.5″
SPINDLE TAPER: CAT 40
SPINDLE SPEED – 1 RANGE: 8,000 RPM
SPINDLE MOTOR: 30 MIN. / CONT. 20 HP / 15 HP
TOOL MAGAZINE CAPACITY – SIDE MOUNT 30 STATION ATC
MAX. TOOL DIAMETER/LENGTH/WEIGHT: 4.9″ / 11.8″ / 17.6 LBS.
TOOL CHANGE TIME: 3.7 SECONDS
RAPID TRAVERSE RATES (X,Y/Z): 1417 IPM / 1181 IPM
CUTTING FEED RATES: .04 – 590 IPM
MACHINE DIMENSIONS: L: 96″ x W: 117″ x H: 106.5″
MACHINE WEIGHT: 14,329 LBS.

CHIP CONVEYOR
COOLANT THROUGH SPINDLE
