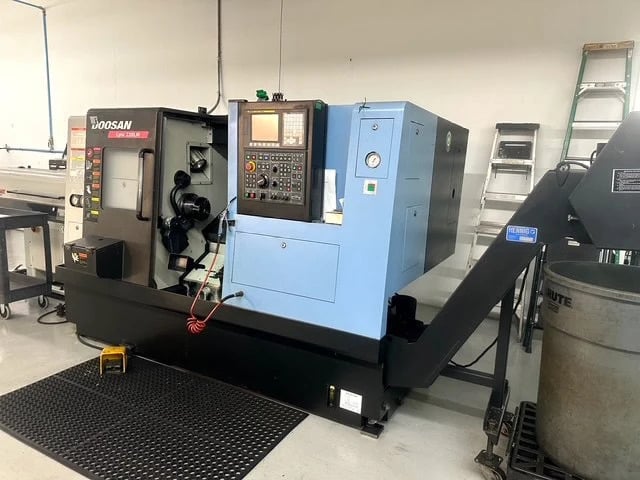

DOOSAN LYNX 220LM
SPECIFICATIONS:
SWING OVER BED 20.08″
MACHINING LENGTH 20.08″
DISTANCE BETWEEN CENTERS 0″
DISTANCE BETWEEN SPINDLES 0″
CHUCK SIZE 1 8″
SPINDLE NOSE 1 A2 -5
SPINDLE BAR CAPACITY 1 2.01″
TURNING DIAMETER, SHAFT DIAMETER 9.84″
SPINDLE SPEEDS 1 6,000 RPM
SPINDLE HORSEPOWER 1 20 hp
SPINDLE BORE DIAMETER 1 2.4″
RAPID TRAVERSE RATE – X1 1,181 in/min.
RAPID TRAVERSE RATE – Z1 1,471 in/min.
RAPID TRAVERSE RATE – C 400
TURRET CONFIGURATION 1 12
TURRET ROTARY TOOL SPINDLE SPEED 1 6,000 RPM
TURRET ROTARY TOOL HORSE POWER 1 5 hp
TAILSTOCK QUILL DIAMETER 2.53″
TAILSTOCK TAPER MT 4
TAILSTOCK QUILL TRAVEL 3.15″
PROGRAMMABLE TAILSTOCK YES
# AXIS 3
BAR CAPACITY 2.01″
TAILSTOCK ‘Yes’
LIVE TOOLING ‘Yes’
SUB SPINDLE ‘No’
CONTROL CNC (fanuc)
WEIGHT 8818 LBS
EQUIPPED WITH:
DOOSAN FANUC SERIES I CNC CONTROL
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
3 LIVE HOLDERS
BARFEED INTERFACE
ALL AVAILABLE STATIC TOOL HOLDERS
ALL AVAILABLE MANUALS
