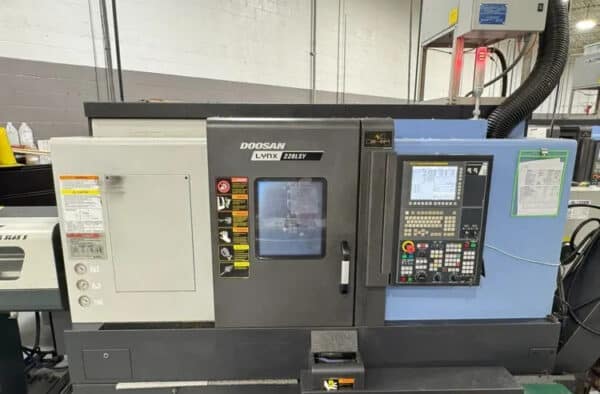

DOOSAN LYNX 220LSYA
SPECIFICATIONS:
CNC Control: yes
Type of CNC Control: Fanuc i Series
Max Swing Over Bed: 23.6″
Main Spindle Chuck Size: Collet Chuck (8″ STD)
Max Turning Diameter: 11.8″
Max Turning Length: 20.1″
X-Axis (Cross Travel of Upper Turret): 8.1″
Z-Axis (Longitudinal Travel of Upper Turret): 22″
Y-Axis (Travel of Upper Turret): 5.25″
C-Axis (Indexing Positions of Main Spindle): .001°
C2-Axis (Indexing Positions of Sub Spindle): .001°
Main Spindle Thru Hole: 2.68″
Main Spindle Nose: A2-6
Main Spindle Horsepower: 20 HP
Max Main Spindle Speed: 4,500 RPM
Sub-Spindle Chuck Size: 6″
Max Sub-Spindle Speed: 6,000 RPM
Upper Turret Live Tooling Horsepower: 5 HP
Max Upper Turret Live Tooling Speed: 6,000 RPM
Upper Turret Tool Capacity: 12/24
Machine Cutting Hours: 6,526
Electrics: 220/3/60
Approximate Machine Dimensions: 113″ x 70″
Approximate Machine Height: 83″
Approximate Machine Weight: 9,400 LBS
EQUIPPED WITH:
Fanuc Series i CNC Control, Max Swing 23.6″, Max Turning Length 20″, Collet Chuck on Main Spindle 4500 RPM, 6″ 3-Jaw Chuck on Sub Spindle 6000 RPM, BMT-45 Turret W/ Live Tooling 6000 RPM Spindle, Tool Setter, Parts Catcher, Parts Conveyor, 4′ CNC Indexing VS-65 Bar Feeder, Chip Conveyor & Coolant System. Live Toolholders Included.
