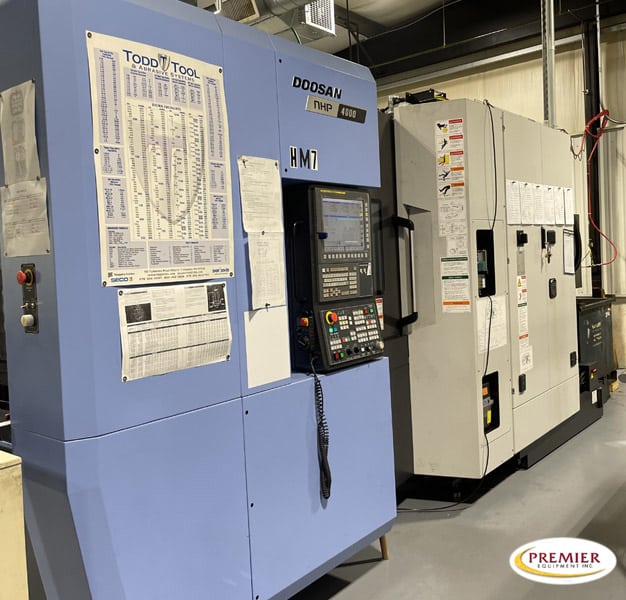

Doosan NHP4000 CNC Horizontal Machining Center
Specifications (subject to buyer verification):
Pallet Size: 15.7″ x 15.7”
Pallet Indexing: .001 Full Contouring
Maximum Table Capacity: 882 lb
Maximum Workpiece Size: 24.8″ x 35.4″ (H)
X Axis Travel: 22″
Y Axis Travel: 25.2″
Z Axis Travel: 26″
X Axis Rapid Traverse: 2,362 ipm
Y Axis Rapid Traverse: 2,362 ipm
Z Axis Rapid Traverse: 2,362 ipm
Cutting Feedrate: 0 – 60,000 mm/mi
Number of Tools : 60 ATC
Spindle Taper: CAT40 Big Plus
Spindle Power: 40 hp
Spindle RPM: 15,000 RPM
Dimensions: 194” x 91” x 105.9″
Weight: 21,385 lb
Equipped With (subject to buyer verification):
Fanuc Series 31i-Model B CNC Control
40HP Direct Drive Big Plus/CAT 40, high torque Spindle (15,000 rpm)
B-axis (full 4th axis)
Chilled ball screws, ball nut, and ball screw mounts
60 Tool ATC
Spindle Chiller
USB Port and PCMCIA Port at Control
Way-lube Skimmer
3 Color Signal Light
Thru-spindle Coolant
Tool Life Monitoring
6586-9311 Turbo Micro Fine 2 Filtering Chip Conveyor (includes freight)
AICC II and 200 Block Look Ahead
Rigid Tapping
RMP60-40 Renishaw RMP60 spindle probe
RTS-AA Renishaw Tool Setter with pop up box
