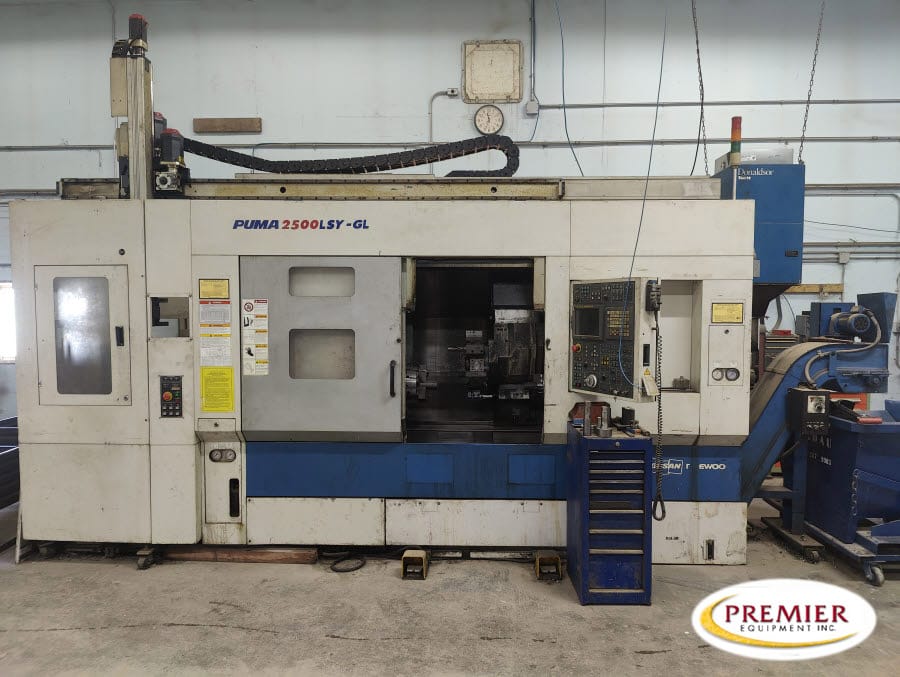

Doosan Daewoo Puma 2500LSY-GL Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
CAPACITIES
SWING OVER BED: 23.6″
SWING OVER SADDLE: 21.7″
MAXIMUM TURNING DIAMETER: 12.9″
MAXIMUM TURNING LENGTH: 29.5″
BAR CAPACITY: 3”
TRAVELS
X-AXIS: 9.8”
Z-AXIS: 32.7”
Y-AXIS: 3.9”
B-AXIS: 32.7”
MAIN SPINDLE
SPINDLE SPEED: 3,500 RPM
SPINDLE NOSE: A2#8
SPINDLE BEARING DIAMETER: 5.1”
SPINDLE THROUGH HOLE DIAMETER: 3.4”
MINIMUM SPINDLE INDEXING ANGLE (C-AXIS): .001 DEG
TURRET
POSITIONS: 12
OD TOOL SIZE: 1”
BORING BAR DIAMETER: 1.6”
INDEXING TIME: .1 SEC
ROTARY TOOL SPINDLE SPEEDS: 5,000 RPM
SUB-SPINDLE
SPINDLE SPEEDS: 6,000 RPM
SPINDLE BEARING DIAMETER: 3.1”
SPINDLE THROUGH HOLE DIAMETER: 1.8”
MINIMUM SPINDLE INDEXING ANGLE (C-AXIS): .001 DEG
FEEDRATES
X-AXIS: 787 IPM
Z-AXIS: 944 IPM
Y-AXIS: 295 IPM
B-AXIS: 787 IPM
MOTORS
MAIN SPINDLE: 30/20 HP
SUB-SPINDLE: 15/10 HP
ROTARY TOOL: 7 HP
GENERAL
DIMENSIONS: 138″ LR X 67″ FB X 82” H
NET WEIGHT: 12,000 LBS
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC
Gantry Specs:
OD Max Diameter 8.5” diameter
Max Weight 33 lb payload
Equipped With (subject to buyer verification):
Fanuc Series 18i-TB CNC Control
14 Station Robotic Gantry Load and Unload System
C and Y Axis Milling Capability
10″ SMX 3- Jaw Chuck on Main Spindle
6.75″ SMX 3-Jaw Chuck on Sub Spindle
12 Station Bolt-On Turret with Live Tool Capability
Automatic Tool Presetter
