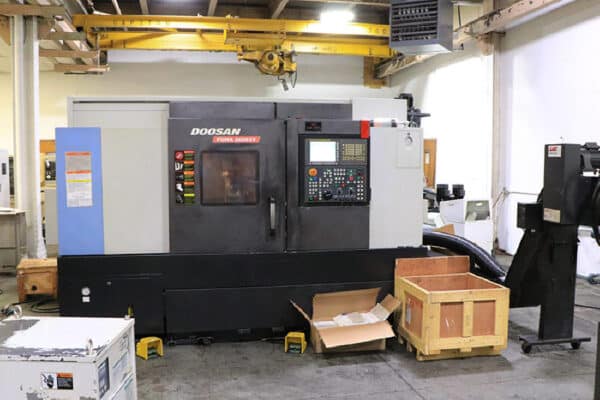

Doosan Puma 2600SY – 2011

DOOSAN PUMA 2600SY CNC TURNING CENTER

SPECIFICATIONS:
CNC Control: yes
Type of CNC Control: Fanuc 31iMA CNC Control
Max Swing Over Bed: 30.7″
Main Spindle Chuck Size: 10″
Max Turning Diameter: 14.8″
Max Turning Length: 29.9″
X-Axis (Cross Travel of Upper Turret): 10.23″
Z-Axis (Longitudinal Travel of Upper Turret): 32.67″
Y-Axis (Travel of Universal Head) (Y1-Axis): ± 4.13″
C-Axis (Indexing Positions of Main Spindle): .001°
C2-Axis (Indexing Positions of Sub Spindle): .001°
Main Spindle Thru Hole: 3″
Main Spindle Nose: A2-8
Main Spindle Horsepower: 30 HP
Main Spindle Speed Range: 20 – 4,000 RPM
Sub-Spindle Chuck Size: 8
Sub-Spindle Thru Hole: 3″
Sub-Spindle Nose: A2-8
Sub-Spindle Horsepower: 20 HP
Sub-Spindle Speed Range: 20 – 6,000 RPM
X-Axis Rapid Traverse Rate: 1181 IPM
Z-Axis Rapid Traverse Rate: 1181 IPM
Upper Turret Live Tooling Horsepower: 7.5 HP
Upper Turret Live Tooling Speed Range: 20 – 5,000 RPM
Upper Turret Tool Capacity: 12 (All Live)
Machine Cutting Hours: 8,983
Electrics: 220/3/60
Approximate Machine Dimensions: 153″ x 74″
Approximate Machine Height: 85″
Approximate Machine Weight: 14,250 LBS

EQUIPPED WITH:
Fanuc 31iMA CNC Control, 10.4″ Color LCD Screen, USB Port, PC/ MCIA Interface, 10″ 3-Jaw Chuck Main Spindle, 8″ 3-Jaw Chuck Sub-Spindle, 4000 Max RPM Main Spindle, 6000 Max RPM Sub-Spindle, 3″ Bar Capacity, 12 Position Turret w/ Milling, 5000 RPM Milling Spindle, 10.2″ X-Axis Travel, ± 4.1″ Y-Axis Travel, 32.6″ Z-Axis Travel, 1° C-Axis, Tool Setter, Parts Catcher, Chip Conveyor & Coolant System.
