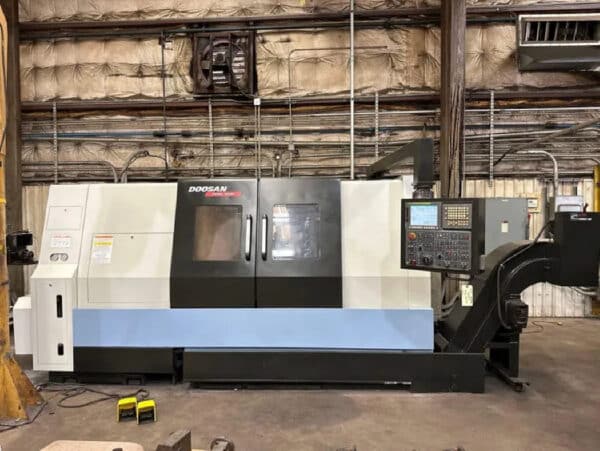

DOOSAN PUMA 400MC CNC LATHE
Fanuc i Series Control
21″ Samchully 3 jaw chuck
1,500 rpm A1-15 Spindle 2-Speed Gearbox
7.1″ Through Hole
6.5″ Bar Capacity
30.3″ Swing Over Bed
23.2″ Swing Over Saddle
22″ Max Turning Diameter
38.5″ Max Turning Length
14.1″ X-Axis Travels
43.5″ Z-Axis Travels
360° C-Axis (Live Tooling)
12 Station BMT 75 Live Tooling Turret
Tool Pre-Setter
Rapid Traverse X- 629 ipm, Z- 708 ipm
Programmable Hydraulic Tailstock MT#6 / Quill Diameter 4.7″
EQUIPPED WITH:
10.4″ Color Display
Ethernet
64 Pairs Tool Offset
Work light
Foot Switch
Chip Conveyor,
74 Gallon Coolant Tank
50 HP Motor
All Available Tool Holders
