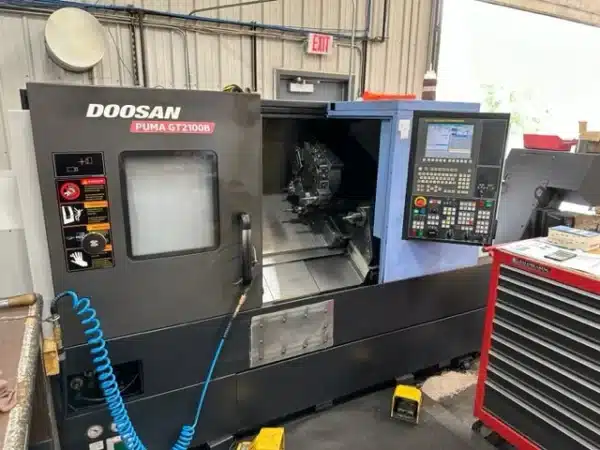

DOOSAN Puma GT2100B
SPECIFICATIONS:
SWING OVER BED 23.6″
MACHINING LENGTH 21.7″
DISTANCE BETWEEN CENTERS 23″
DISTANCE BETWEEN SPINDLES 0″
CHUCK SIZE 1 10″
SPINDLE NOSE 1 A2 – 8
SPINDLE BAR CAPACITY 1 3.2″
TURNING DIAMETER, SHAFT DIAMETER 15.4″
SPINDLE SPEEDS 1 3,500 RPM
SPINDLE HORSEPOWER 1 25 hp
SPINDLE BORE DIAMETER 1 3.6″
RAPID TRAVERSE RATE – X1 945 in/min.
RAPID TRAVERSE RATE – Z1 1,181 in/min.
GEAR RANGES 0
TURRET CONFIGURATION 1 12
TAILSTOCK QUILL DIAMETER 3.1″
TAILSTOCK TAPER MT 4
TAILSTOCK QUILL TRAVEL 3.1″
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 22.8″
# AXIS 2
BAR CAPACITY 3.2″
TAILSTOCK YES
LIVE TOOLING NO
SUB SPINDLE NO
CONTROL CNC (FANUC OI-TC)
WEIGHT 8140.00
EQUIPPED WITH:
FANUC OI-TC CNC CONTROL 10.4 COLOR MONITOR
TOOL PRESETTER
DOOSAN TOOL LOAD MONITORING SYSTEM
MACRO EXECUTER
PROGRAMMABLE TAILSTOCK
BAR FEED INTERFACE
HIGH PRESSURE COOLANT INTERFACE ONLY (COOLJET NOT INCLUDED)
64 PAIRS TOOL OFFSETS
ETHERNET FUNCTION
AUTO PARTS CATCHER
LIVE CENTER MT 4
CHIP CONVEYOR
BIG BORE OPTION 3.2 BAR CAPACITY
